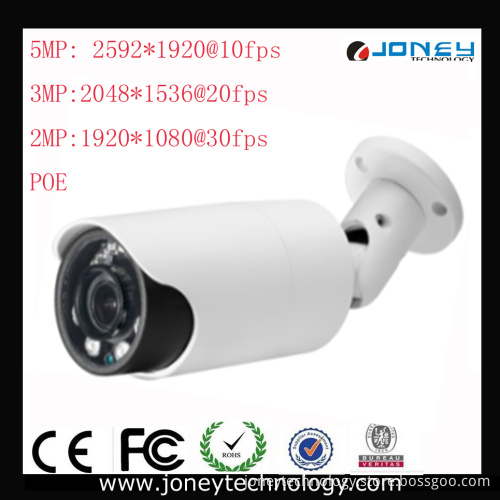

5MP IP Camera with Audio and Alarm Inputs, Poe and Memory Card Slot

Features
> 1/2.5" 5.0 Megapixel Progressive Scan Aptina CMOS sensor
> Ti DaVinci Series DSP
> H. 264&MJPEG video compression and JPEG image capture
> Support dual-stream encoding
> Max 10fps 5.0MP (2592× 1920)
> Support ICR true Day/Night
> With 2.8-12mm vari-focal lens
> Support Alarm I/O, RS485 interface
> Max 32 GB TF card for local storage
> Support BNC Video Output

ModelIPC-HFW4300CJL

General
Main ProcessorTi DaVinci Series DSP
Operating SystemEmbedded LINUX
CapacitySimultaneous remote monitoring, local recording and remote control
User InterfaceWEB, CMS, NVR
Camera
Image Sensor1/2.5" 5.0Megapixel Progressive Scan Aptina CMOS Sensor
Effective Pixels2592(H)× 1920(V)
Electronic Shutter 1/5s to 1/50, 000s
Mini. IlluminationColor: 0.1Lux/F1.2; B/W: 0.01Lux/F1.2
Signal Noise Ratio>50dB
Day/Night ModeAuto, dual IR-Cut filter
Gain ControlAuto/Manual
White BalanceAuto/Manual
WDR Dynamic RangeDWDR
Lens Mount C/CS
Auto lrisSupport
Video
Video CompressionH. 264/MJPEG Optional
H. 264 Encode TypeH. 264 Baseline/H. 264 Main Profile/H. 264 High Profile Optional
Video Bit RateMain Stream: 500Kbps~12Mbps
Sub Stream: 100Kbps~6Mbps
Image Resolution5.0MP(2592× 1920)/3.0MP(2048× 1536)/1080P(1920× 1020) / 720P(1280× 720) / D1(704× 576/704× 480)
Encoding SpeedMain Stream: 5.0MP/10fps; 3.0MP/20fps; 1080P/720P(1~25fps/30fps)
Extra Stream: D1/CIF(1~25fps/30fps)
Video FormatPAL/NTSC
Analog Video Output1 channel BNC (1.0Vp-p, 75Ω )
Audio
Audio CompressionG. 711A/G711u Optional
Audio Bit RateG. 711A(8kbps)/G. 711u(8kbps)
Audio Input1-channel 3.5mm audio interface MIC IN/Line IN
Audio Output1-channel 3.5mm audio interface (line level, 600Ω )
Network
EthernetRJ-45 (10/100Base-T)
Network ProtocolIpv4/Ipv6, RTSP, TCP/UDP, HTTP, DHCP, DNS, FTP, DDNS, PPPoE, SMTP
Common FeaturesOne button Reset, Prevent Flicker, Dual-stream, Heartbeat, Password Protect, Video cover, Motion Alarm
ONVIFONVIF Ver. 2.3
Max User Access10 users
Smart phoneIphone, iPad, Android,
Remote OperationMonitor, System setting, , Log information, Maintenance & Upgrade
Auxiliary Interface
Reset InputOne Reset Button(Hold on 3 seconds at least)
SD CardMax 32GB, local storage
RS485PTZ control
Alarm Input1-channel input, Normally Open /Normally Close modes adjustable
Alarm Output 1-channel output, 120VAC 1A/24VDC 1A
Video Output 1Vp-p Composite Output(75Ω /BNC)
Environmental
Power SupplyDC12V
Power Consumption<3W
Working Environment-10º C ~ +50º C, Humidity less than95%(Non-condensing)
PoE yes IEEE802.3af
Dimensions(mm)310mm*155mm*110mm
Weight(kg)1.1KG
