15dBm WCDMA 2100MHz Built-in Antenna Pico Repeater/Signal Booster
Model: VR-1545-W-I

The WCDMA Built-in Antenna Pico Repeater/Signal Booster is designed to provide a more cost-effective solution than adding a new Base Transceiver Station (BTS) to improve signal coverage and communication quality in WCDMA system.
The repeater is working as a relay between the BTS and mobile phones. It receives the low-power signal from BTS via the Built-in Donor Antenna, linearly amplifies the signal and then retransmits it via the Built-in Service Antenna to the weak/blind coverage area. And the mobile signal is also amplified and retransmitted to the BTS via the opposite direction.

Features
Automatic system gain Control (AGC) available
Linear power amplification to effectively suppress inter-modulation and spurious emission
Smart Automatic Level Control (ALC) ensures output level stable and adjustable continuously
Adopting filter with highly selectivity and low insertion loss eliminates interference between uplink and downlink
Easy Installation and Automatic Operation, ready for use

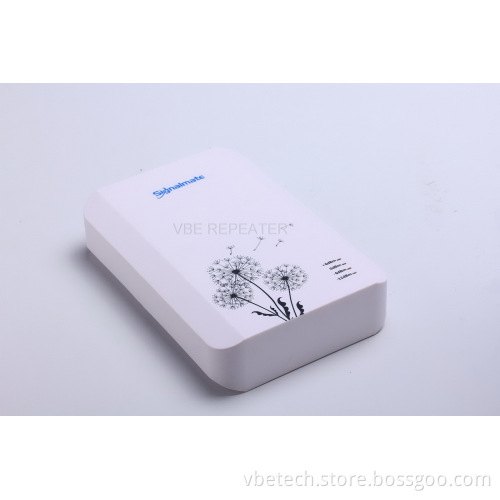

15dBm WCDMA 2100MHz Built-in Antenna Pico Repeater/Signal Booster

Technical Specifications

Items		Specifications
Working Frequency	Uplink	1920-1980MHz
	Downlink	2110-2170MHz
Output power	Uplink	10dBm
	Downlink	15dBm
Maximum Gain ( UL and DL )		45dB
ALC ( Automatic Level Control )		>45dB
AGC (Automatic Gain Control)		30dB in step of 1dB (Auto)
System noise figure		5dB @ max. gain
Spurious Emission Mask		Comply With 3GPP TS 25.106
Spurious Emission		Comply With 3GPP TS 25.106 (Category B)
Noise Floor		<-47dB
IM3		≤-45dBc
Power supply(customized)		100V-240VAC 50Hz
Gain Flatness		≤4dB/3.84MHz
Modulation Accuracy		≤12.5%
I/O Inter-modulation		Comply with 3GPP TS 25.106
Frequency stability		≤0.01ppm
Group Delay		UL≤1μs
Peak Code Domain Error		≤-35dB@Spreadimg Factor 256
Weight		1Kg
Size		24016452mm
