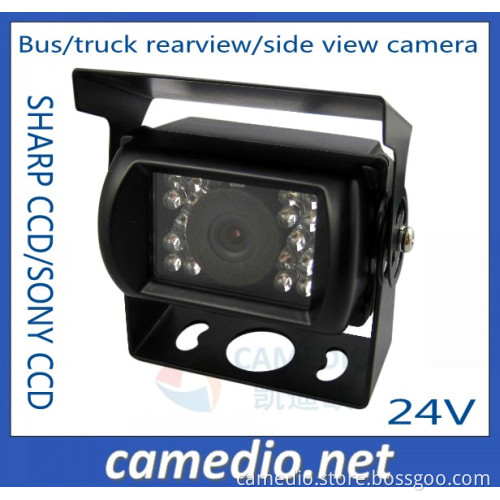

Waterproof IR Night Vision Bus/Truck Camera for Rearview/Side View CCD 24V (CM-629)

Waterproof IR Night Vision Bus/Truck Camera for Rearview/Side View CCD 24V (CM-629)

Get Latest Price

Payment Type:: T/T, Paypal, Money Gram, Western Union, Paypal

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China, Shenzhen
Payment Type:	T/T, Paypal, Money Gram, Western Union, Paypal

Product Description

FEATURES:

1.) 18 infrared lamp used in dark up to 10-15 meters

2.) Can be adjusted at Multi-level angle

3.) 120 degree diagonal angle lens, ensuring car's rear side for effective reversing and parking operation

4.) 100% complete waterproof

5.) Top quality camera. Easy and safe to mount

6.) Waterproof, shockproof, anti-interference

7) SHARP CCD/SONY CCD optional

8) 24V voltage

9) RCA/AVIATION connector optional

SPECIFICATIONS:

Image Pick-up Device: CMOS,1/4"CCD,1/3"CCD can choose

Lens: 2.8mm/120°,3.6mm/92°can choose

TV system: PAL/NTSC can choose

Effective pixels LPAL:512×582/NTSC:512×492

Sensing Area: 9.6um×6.3um

Horizontal Resolution :420TVlines

Usable Illumination: 0.2LuxF/1.8,0Lux

Electronic Shutter Time NTSC:1/60-1/100,000sec/PAL:1/50-1/100,000sec

Video Output: CVBS1.0Vp-p,75ohm

Sync System :Internal Synchronization

Power Supply :DC8-12V 120mW

Operation Temperature :-20ºC~+75ºC(RH95%Max.)

Storage Temperature -40ºC~+85ºC(RH95%Max.)

Packing Color box

Basic feature:

1. This tilt body style camera compatible with most rear view systems or car LCD screens that support camera or video RCA/4-pin aviation connector input.

2. The camera made out of high quality components, 120 degrees wide angle lens and very sharp color CCD chip.

3. The body of the camera features weather proof, shock proof constriction with night vision infrared LEDs and light detection sensor.

Advantage:

1.Front casing----Material of PC/ABS could resistant high temperature(stock in 85°C for 4hours) as well as flame retardant.

2.Lens----We are questing for perfect definition, lens are made of 5G Full-glass.

3.Image Sensor----HD CCD

4.Rear casing----design of plug in / punch.

5.PCB board----Self-developed circuit board with PCB environmentally friendly materials, no pollution, more durable. With overload protection function, and prevent short circuit. Even if wrong interface connection for wiring, it won't bring damage to the product.

Packaging
Display-box: 133*82*77mm-0.040kg
Carton box: 420*280*160mm-0.42kg-20PCS
420*280*400mm-0.63kg-50PCS
560*360*390mm-0.98kg-85PCS
