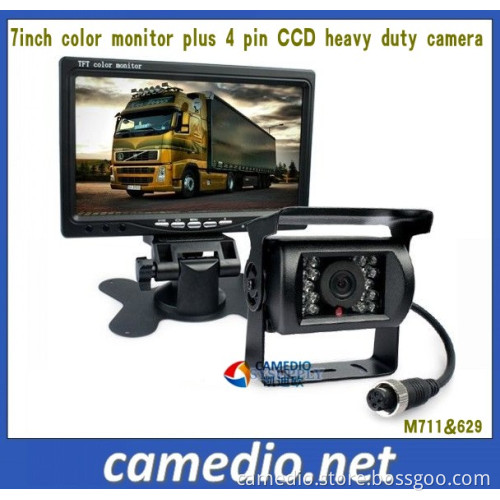

7inch Heavy Duty 24V CCD Bus/Truck Rear View Camera System

Features:

* Monitor can be roof mounted or dash mounted to meet your special needs.

* Display image can be rotated horizontally and vertically for mirror or normal viewing.

* Monitor will automatically turn on and switch to the rear view camera when the reversing is
engaged.

* Support two camera video inputs: V1/V2 Selectable.

Monitor Specification:

7" TFT-LCD  monitor with undetachable sunshade design
Full function remote control
2 video inputs
Automatic change to backup view when on reverse position,even the monitor is turned off
Video signal disappear ,display blue screen
Multi-language(English/spanish/portuguese)
Screen size:7 inches
Display mode:16:9/4:3
Format:PAL or NTSC
Pixels:480*RGB*234/800*RGB*480
Power supply:DC12V/24V
Power consumption:6W

Camera Specification:

Image sensor : Sharp CCD

Effective pixels: N:512(H)*492(V)  P:512(H)*582(V)
Resolution(TV lines): 420 TV lines

Lens angle:2.8mm 120°
water-proof rating:IP67-IP68
Minimum illumination: 0Lux

IR lights: 18pcs for super night version
Horizontal Sync.Frequency(KHZ):1/50 or 1/60~1/10,000
Vertical Sync.Frequency(HZ):15.625/15.734
Video Output: 1Vp-p,75 Ohm
S/N ratio : Better than 48dB
Power Source:DC8-12V 120mW
AGC:Auto
BLC:Auto
White Balance:Auto
Operating Temperature(Deg.C): -20~+75(RH95%Max.)
Storage Temperature(Deg.C) : -40~+85(RH95%Max.)






Accessories:

• 1 x7'' TFT LCD Monitor (DC 12V)
• 1 x Rearview camera (DC 12V)
• 1 x Mounting Plate
• 1 x Remote Controller (batteries are not included)
• 1 x 10m 4-pin cable
• 1 x Instruction
