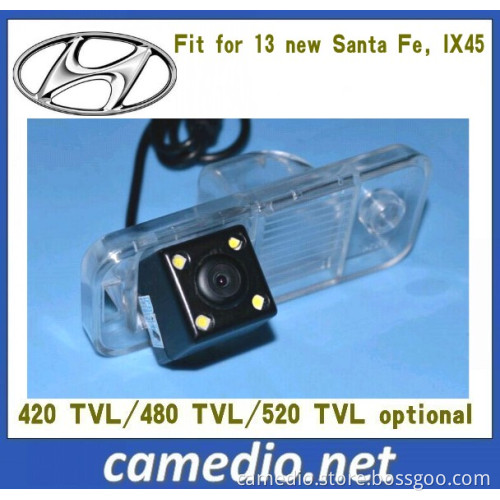

170 Degree Waterproof Special Rear View Backup Car Camera for 13 New Santa Fe, IX45

1) Special rear view car camera for Hyundai 13 new Santa Fe, IX45

2) 1/3 Color CMOS image sensor, 480 TV lines

3) PAL/NTSC TV Systems optional.

4) Waterproof design, weather-resist.

5) 170 degree wide viewing angle

6) Image sensor optional: PC1030 420 TV lines, MT9V136 analog CCD 480 TVlines, PC1089 520TVL CCD


Advantage:

1. High definition
2. Waterproof
3. Shockproof
4.1-year warranty
5. OEM/ODM
6. Easy to install
7. Super wide viewing angle(170° )
8. Mirror/Non-mirror image switch(optional to some chipset)
9. Parking lines can be turned on and off (optional to some chipset)
10. Different chipset to choose(Sony CCD/CMOS(OV7960)/CMOS(OV7950/OV7959))


Specification:
Image sensor: PC7070

1. Effective pixels: 682*504 pixels

2. Video output: 1Vp_p± 10%

3. Scanning system: 2: 1 interlace

4. Minimum illumination: 0.05 Lux/F=1.2(0 Lux with IR on)

5. Operation temperature: -20° C - 75° C, RH 95% MAX

6. TV system: PAL/NTSC

7. Sensing area: 3.8 mm *2.9 mm

8. SNR: >47.2dB

9. Lens angle: 135° /170°

10. Resolution: 480 TV lines

11. Shutter speed: 1-1/10000

12. White balance: Auto

13. Waterproof: IP67/68

14. Power supply: Analog: 2.8V, HVDD: 2.8V, CVDD: 2.8V

15. Working temperature: -20° C - 70° C, RH 95% MAX



Specifications for other different image devices:
