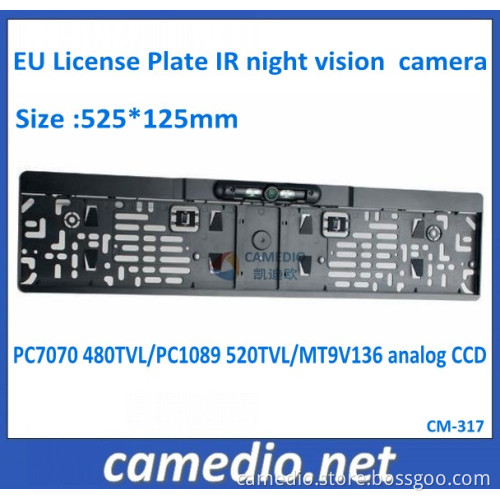

OEM HD Waterproof Color EU License Plate Frame Reverse Camera

Get Latest Price

Payment Type:: T/T, Paypal, Money Gram, Western Union, Paypal

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China, Shenzhen
Payment Type:	T/T, Paypal, Money Gram, Western Union, Paypal

Product Description

1. High definition
2. Shockproof
3. Waterproof, shatterproof protection level equals to IP68K
4. IR night vision

Features:
High definition

Shockproof

Waterproof, shatterproof protection level equals to IP68K

Super wide angle(135° )

Night vision available, day/night sensor for automatic adjustment

Flexible installation: Can be mounted on rear, front, or either side of vehicles

Camera angle is adjustable

Performs in rugged conditions. Operating temperature: -20º C +70º C

Mirror / Real optional

Reversing grid is optional

Three working positions: Protection, reverse, rear view

CCD chips available

Hidden-type, specially designed for car rear view system

Fixed spring adds convenience and reliability insatllation

Electrical Parameters:
Input voltage: 12V

Input current: 80MA-120MA

Average power consumption: <1W

Environmental Parameter

Operating humidity: -20~+75(RH95%, Max)

Storage humidity: -30~+85(RH95%, Max)

The IP rating: IP68

Optical Parameter:
Image sensor: CMOS

Signal system: Analog signals

TV line: 480line

Effective pixels: 648*488

Scanning system: 1/50Hz, 1/60Hz

Sensing area: 5.5um*5.5um

Minimum illumination: 0.2lux

Night vision distance: 5m-10m

Lens: 1.7mm

Signal to noise ratio: >48db

Shutter speed: 1/10000second

Video output: 1.0vp-p. 75ohm

Specifications for different image devices
