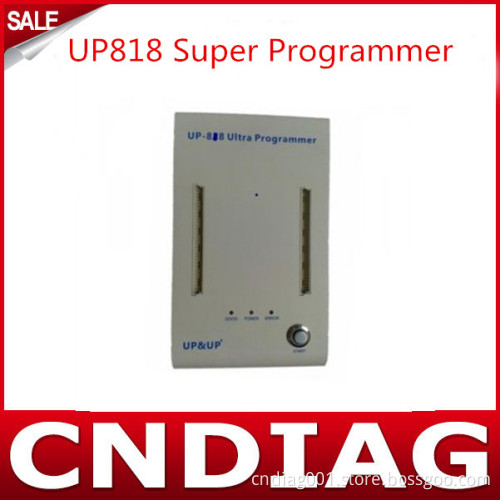

Up818 Ultra Programmer up-818 Super Fast Universal Programmer Universal Flash Programmer

UP818 Ultra programmer is obd2tuning universal Programmer. UP818 Programmer works for BGA NAND flash. UP-818 high speed flash programmer Support for the latest models of NOR FLASH, NAND FLASH, SERIAL FLASH.

Incredible programming speed

    Read and write pulses up to 48MHz/s, close to the limit.
    Programming + checking a 1Gb NAND FLASH just take 34 seconds,
    programming + verify a 8Mb SERIAL FLASH just 4 seconds;
Even more,it onlty takes 66seconds to program and verify a 2GB nand flash K9F2G08U0M.

110Way universal driver circuit,economical and fast compatible with new ic.

   all the chips which under 110pins and with the same package type only need 1 adapter(such as 1 adapter for all the PLCC84/68/44/40/32/28/20....);
   1.2V to 5V widely support a variety of devices;
  real-time graphic show short-contact detection and the condition of host;

Program Interface is friendly,simple and easy to operate(especially for batch production in factory):

 graphic window will show all the programming process, especially suitable to batch production.
 different device configurations and options can be set under the uniform entrance;
 easily get started without extensive training.

Powerful data security:

Adopt reliable engineering encryption technology, and innovatively adopt the OTP(one-time password) project mechanism to ensure project  file security during the transmit and use process and to control production.

High effective batch production patterns:

  Supports up to eight clusters production, a PC can be connected to up to 8pcs UP818, but takes very little system resources;
  SERIAL FLASH supports four programing modules simultaneously. In other words,a host device support writing four chip device,    400% the production efficiency;
  support for asynchronous read and write for every clustered host unit , without waiting for synchronization:
  The condition of each host operation can be clearly dispaly in one window , without switching back,it greatly improve the overall efficiency of production;


High compatibility, durability of BGA adapters:

   Patented BGA adapters can make sure the average lifespan will be more than 20,000 times,  far more than other adapter and also easy to use;

UP818 Hardware specifications:

  Communication Interface: USB2.0 (compatible USB1.0/1.1)
  System requirements: WINDOWS XP/2003/NT/WIN7 etc, 256MB RAM or above, 1GB or more hard disk space;
  Power: AC input 100V-240V, 50/60HZ ;
                   output DC 5V/1A;
  Host size:208 * 128 * 45mm(about 8.2"*5"*1.8"),
   Net Weight: 0.8kg(about 1.7lbs).

Standard accessories:

  Host, a power supply, USB2.0 cable one, a user manual, software CD, warranty card;

Optional: adapter.
