Original Launch X431 V (X431 PRO) WiFi/Bluetooth Tablet Full System Diagnostic Tool with Multi-Languages

Launch X431 V WiFi/Bluetooth Tablet Full System Diagnostic Tool

Highlights:
1. Supported Languages: English, German, French, Italian, Spanish, Portuguese, Polish, Russian, Japanese, Traditional Chinese
2. Wi-Fi: Supported
3. Bluetooth: Supported
4. Dealer Code: 86A
5. Easy to Update: Online update, Support Online one-click update, no need to update the software to CF Card.

Description:

X431 V Full System Automotive Diagnostic Tool is a new diagnostic tool release by Launch tech. It completely replace X431 PRO, it support one click online update, support full range car model from USA, European and Asian. X431 V is perfect tool for car diagnose.

Features:

Panel PC: High configuration of hardware, fast running speed
Capacitor Screen: Multi-touch capacitor screen, more smooth operation
WiFi Diagnosis: Wireless communication between intelligent mobile terminal and DBSCar connector via Bluetooth
Portable: Reasonable PDA design, small size for easy carry
Optimized Interface: Brand new operation interface design, interface more friendly and operation much easier
WiFi communication: Support WiFi network
Android System: Users can install and Android software
Numerous Additional Functions: Photo, video, multimedia, other software application, etc.
One click update: You do not have to download software to memory card anymore, can do one click update directly through your machine.

Models:

Acura, Changan, Daweoo, Gaz, Hafei, Huachen, Jiao, Lexus...

Pannel PC Parameters:

Operating System: Android
CPU: Dual core 1GHz
Battery: 3000mh, rechargeable polymer lithium battery
Standby time: It is subject to the using environment. Generally it can keep working for 4 hours.
Extension memory card: 32G Micro SD(TF) card supported
Memory: 512MB
Storage capacity: 2GB
LCD: 7.0 inch
LCD resolution: 1024X600
Touch screen: 5 points capacitive touch screen
Cameras: 2 mega rear and 0.3 mega front
Working temperature: -10° C ~ 55° C (14° F to 131° F)
Storage temperature: -20° C ~ 70° C (-4° F to 158° F)

DBSCar Connector Parameters:

Working Voltage: 9 ~15V
Average working current: About 35mA
Standby current: About 25mA
Working temperature: -20 to 55° C (-4° F to 131° F)
Storage temperature: -30 to 70° C (-22° F to 158° F)
Storage humidity: <80%
Working humidity: <60%
Net weight: About 26g
Bluetooth Distance: 10M (without obstacle)

What is Difference Between X431 V and X431 IV?

Operation System:
X431 IV: LINUX
X431 V: Android

Screen
X431 IV: LCD Touch with backlight, 240*320
X431 V: 7 inch Capacitive Touch

Processor:
X431 IV: 72MHz 32-bit ARM7
X431 V: 1GHz Dual Core

Memory:
X431 IV: 16M
X431 V: 512M

Storage:
X431 IV: 1GB CF Card
X431 V: 2GB, extendible to 32G

Battery
X431 IV: No
X431 V: 3000mAh, Endurance: 4h

Printer:
X431 IV: Thermal Printer
X431 V: NO

Diagnostic Method:
X431 IV: Test Cable
X431 V: Bluetooth/WiFi

Diagnosis
X431 IV: Wired diagnosis, independently diagnose full system and analysis & display through smart terminal.
X431 V: Bluetooth diagnosis, independently diagnose full system and analysis & display through smart terminal

Diesel Vehicle
X431 IV: Yes, 12V
X431 V: NO

Upgrade method
X431 IV: Download to CF Card
X431 V: Online one-click upgrade

Multi Group Display
X431 IV: 2
X431 V: 4, 6, 12

Camera:
X431 IV: NO
X431 V: Front: 0.2 megapixel, Rear: 2.0 megapixel

Startup Time:
X431 IV: 35s
X431 V: 25s

Picture/Audio/Video/Instant Chat
X431 IV: NO
X431 V: YES

Design Feature:
X431 IV: Encapsulate design at side and bottom, anti-knock, powerful function, economical cost
X431 V: Tablet, Multi-touch, Customer Management

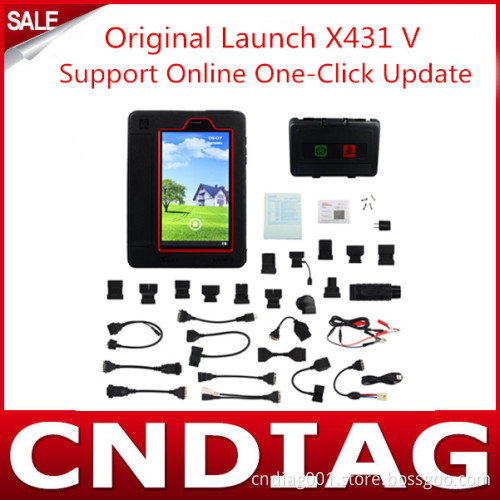

Packing List:

X-431 V pad computer
Password envelope
X-431 V protection sleeve
DBScar diagnostic connector
OBD II extension cable
Cigarette lighter cable
Power adaptor
USB data cable
