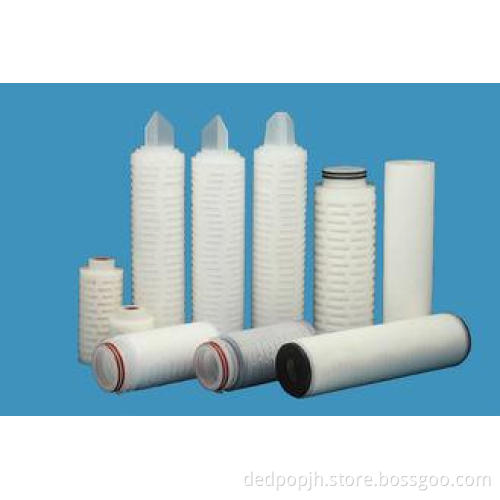

professional High Flow PP Pleated Filter Cartridge , 5 micron 20" 30" 40"
Quick Detail:
- Name: Single cage Liquid Filter Cartridge
- Material of filter media: High quality Polypropylene Or Glassfiber
- 5.0 micron water filter cartridge
- Mainly used for liquid filtration
- Removal Rating: 0.45-10 um
Application:
- Chemical processing;
- Oilfield completion fluids;
- R.O. prefiltration;
- Pharmaceuticals;
- Wine clarification
|
Material |
Membrane: |
Polypropylene or Glass fiber for option |
|
Inner Core: |
Polypropylene |
|
|
Outer Core: |
Polypropylene |
|
|
Support Layers: |
Polypropylene |
|
|
O ring/Gasket: |
Silicone, EPDM, Buna , Viton, Teflon |
|
|
Specifications |
Pore size(um): |
5.0 |
|
Outer Diameter(OD): |
69mm (2.75") |
|
|
Inner Diameter(ID): |
33mm (1.30") |
|
|
Length(inch): |
20", 30", 40" (can be decided by client) |
|
|
Endcaps: |
DOE,SOE(215,214,226,222) |
|
|
Technical data |
Max differential pressure: |
4.2 bar (60 psi) at 25℃ (77℉); |
|
Max temperature: |
80℃ (172℉)at△P≤1.0 bar (14psi) |
|
|
PH value range: |
1-13 |
Competitive Advantage:
100% integrity test
more than 13 years of experience of manufacturing
Reasonable prices
SGS test
IFTA bacterial challenge test
Validation guide
