P20 Outdoor Advertising LED Display , Static DVI HDMI Screen For Commercial Marketing
Description:
1. P10, P12, P16, P20, p25 Available
2. Easy to install and maintenance

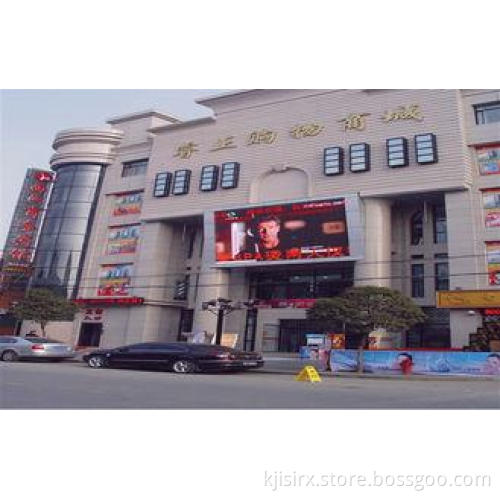

3. Widely used in indoor and outdoor advertising and media promotion, such as Exhibition, Shopping mall,
Football Stadium, Party etc.
4. High quality with vivid visual effect
5. Colorful moving videos and pictures
6. Environmental-protected and saving cost
7. Good sales service
8. Prompt delivery
Specifications:
|
P20 Full Color Display |
|
|
Physical Pixel Pitch |
20mm |
|
Module Size |
320*160mm |
|
Pixel Density |
2500/㎡ |
|
Pixel Configuration |
1R1G1B DIP346 |
|
Best Viewing Distance |
17m |
|
View Angle(Horizontal) |
110° |
|
Brightness |
≥7000cd/㎡ |
|
Driving Method |
Scan Constant Current Driving |
|
Control Mode |
Real Pixel |
|
Cabinet Size |
1280*960mm |
|
Cabinet Resolution |
64*48 |
|
Cabinet Weight |
80kg |
|
Maximum Power Consumption |
480W/㎡ |
|
Operating Voltage |
220±10% or 110±10% |
Applications:
For Events, Wedding Ceremony, TV Stations, Contest - TV Station, Contest, - School, TV Shows,
Exhibitions, Indoor and outdoor architectures, Commercial Marketing Performances, Public Square etc.
They can replace any posters and static billboards and display any animation, video, or text with sound,
and supply different experience and effect for clients’ advertisements.
Note:
Our company products are constantly upgrading, the above parameters is for reference only, please refer
to the actual parameters prevail
Durable fresh color and High brightness
· Patented design of anti-glare mask with high temperature resistant coating on the surface to absorb direct
light, reduce glare, and improve the contrast ratio of display.
· Anti-UV, anti-oxidation module prevents from deformation.
· On-site brightness and chrome calibration can recover the uniformity.
High energy efficiency
· Adopt high-brightness LED with low consumption, saving 20% power energy.
· High PFC power supply can cut 20% power consumption.
· Additional temperature, display and brightness management can also save 6% power energy.
Stability and reliability
· Precise manufacturing process keeps the modules rugged and durable.
· IP65 protection grade, waterproof rubber gasket and military-grade conformal coating enable the display
to work in all weather outdoor environments.
· Aircraft-grade connectors of power supply and signal connection are of high reliability, good conductivity
and durability, suitable for rapid connection and high frequency use.
