Office Gigabit Ethernet Switches Flow Control Network
Description:

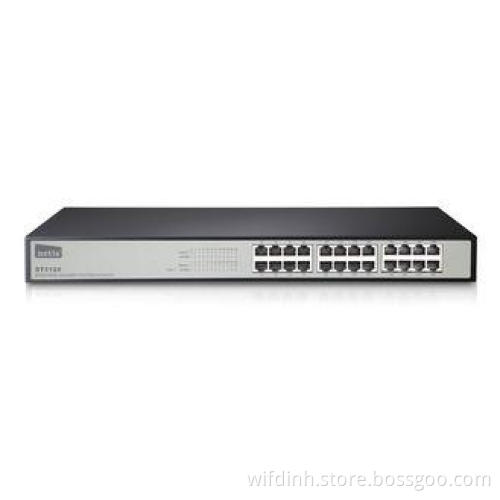

The netis ST3124 Fast Ethernet Rackmount Switch provides 24 10/100Mbps Auto-Negotiation RJ45 ports .It is ideal for the small and medium office use. All ports support Auto MDI/MDIX function, eliminating the need for crossover cables or uplink ports. The 24 Port Fast Ethernet Rackmount Switch provides you with high-performance, seamless and standard upgrade to improve your old network to a 100Mbps network. It will boost your network performance up to full duplex data transfer.
Competitive Advantage:
24 10/100M RJ45 ports
Supports MAC address self-learning and auto MDI/MDIX
Standard 19-inch steel case
Plug and play, no configuration required
Green Ethernet technology link down power saving and link on various cable length power saving
Supports Jombo frame
Supports 8K MAC address
4.8 Gbps Switching Capacity
Fanless design to make sure it works quietly without disturbing your family
Specifications:
|
Hardware |
|
|
Interface |
24 * 10/100M RJ45 port, Auto-Negotiation, Auto MDI/MDIX |
|
LED |
PWR, 1-24 10/100M, 1-24 LINK/ACT |
|
Power Supply |
100-240 V AC/50-60Hz |
|
Dimensions (L x W x H ) |
432 x 200 x 44 mm |
|
Switching Features |
|
|
Standard |
IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, |
|
Access Method |
CSMA/CD |
|
Transmission Method |
Store and Forward |
|
Switch Architecture |
Non-blocking |
|
Data Transmission Rate |
10/100Mbps(Half-duplex) |
|
Switching Fabric Capacity |
4.8Gbps |
|
Built-in Buffer |
2M bits |
|
Jumbo Frame |
2KB |
|
MAC Address Table |
8K |
|
Others |
|
|
Certification |
FCC, CE, BSMI |
|
Environment |
Operating Temperature: 0℃~40℃ |
|
Package |
1 * ST3124 |
