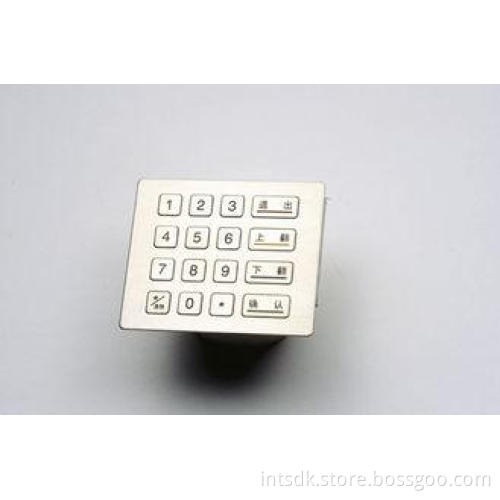

IP65 RS-232 stainless steel and polymer Water-proof Kiosk/ATM keypad
Features
■ High quality stainless steel and polymer keypad
■ Customized layouts
■ Water-proof, dust-free, vandalism-proof, prevent from tamper drilling, penetration, dismantling, audio monitoring and replacement
■ Encrypted keys and other sensitive data are self destruction when tamper attack.
■ Support DES, Triple DES algorithm
Applications
■ Financial equipments: ticket vending machine, automatic vending machine, self-service petrol Terminal
■ Public equipments: Information Kiosks, Telecom Inquiry Terminal
Performance Standards:
■ ISO9564,IBM3624,ANSI X9.8,ANSI X9.9,ANSI X9.19
Capabilities
|
Input keypad |
10 numeric keys, 6 function keys |
|
External keypad |
with connector for 2 bars of x4 function keys outside |
|
Communication interface |
RS-232 |
|
Key lifespan |
≧2,000,000 times |
|
Key activation force |
2~3 N |
|
Key trip: |
≧0.45mm |
|
Encryption process |
PIN encryption, MAC algorithm, data encryption and data decryption, remote key download |
|
Sensitive data can be securely kept for more than five years with power off. |
|
Environment Adaptability
|
Protection level |
IP65(key surface) |
|
Operating temperature |
0℃~+40℃ |
|
relative humidity |
30%~85% RH |
|
Storage temperature |
-25℃~+55℃ relative humidity:20%~90% RH |
|
Atmospheric pressure |
60~106Kpa |
Order information
|
Place of Origin: |
Shenzhen,China |
|
Brand Name: |
SZZT(Shenzhen Zhengtong) |
|
Model Number: |
ZT582A/ ZT582B- Stainless PIN Pad |
|
Dimensions: |
Weight≈0.75kg H/W=Axx F/W= Axx/Bxx/Cxx ZT582A |
|
Dimensions: |
Weight≈0.75kg H/W=Bxx F/W= Axx/Bxx/Cxx ZT582B |
|
Certification: |
|
|
Minimum Order Quantity: |
1 |
|
Delivery Time: |
3-4 weeks |
|
Payment Terms: |
T/T |
