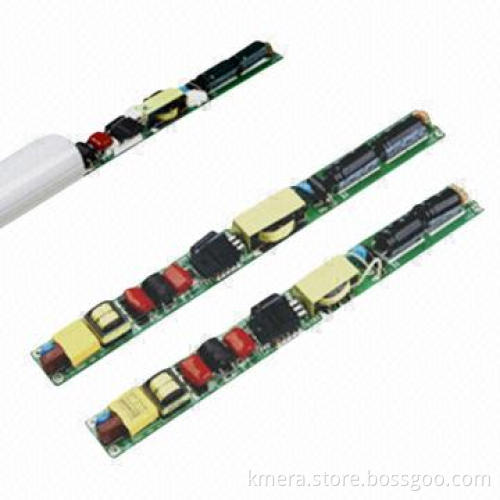

Green LED Driver for Tubes T8/T10, Isolated Design, Naked PCB, with 90-264V Input and 27-65V Output

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or L/C

Product Description

Technical specifications:

Features:

Input voltage: 90-264V AC,47-63Hz

Output voltage: 27-65V

Output current: 160-500mA

Power: 8-20W (max)

Dimension (L x W x H): 168*18*11/182*18*11mm

Conversion efficiency: up to 0.95

Dielectric strength: 2kV AC

Leakage current: <0.75mA,60 seconds

MTBF calculation: up to 50,000 hours lifespan

Type: naked PCB

Worldwide AC input/full range

High power factor

High efficiency and reliability

Protections: short circuit, over load, over voltage

Cooling by free air convection

Built-in constant current limiting circuit with adjustable OCPlevel

Suitable for LED indoor lighting

Compliance to worldwide safety regulations for lighting

2 years warranty

Samples can be ready in 2 working days

Lead time for massive order 5,000pcs is 15 days

OEM/ODM orders are welcome
