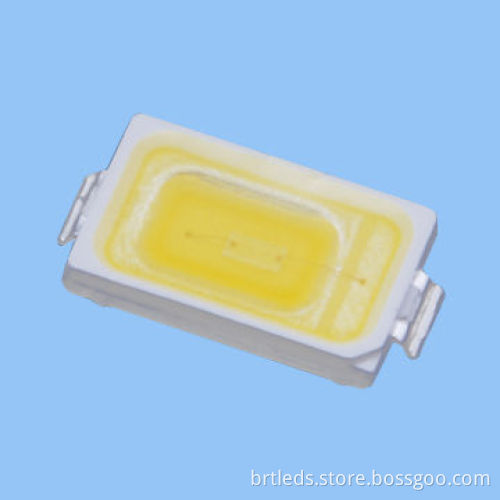

5630 SMD White LED, 5.7 x 3.0 x 0.95mm, High Lumens 55lm at 150mA

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T in Advance

Product Description

Features:

Applications:

Packaging: 2,000 pieces/reel in a aluminum foil bag, 12 bags/box, 6 boxes/carton

Emitted color: pure white

Lens appearance: yellow diffused

Package size (L x W x H): 5.7x 3.0x 0.95mm

LED type: 5730

Power dissipation: 0.5W

Color temperature: 5000-6500K

CRI: 70Ra

Forward voltage: 3.4 to 3.8V at 150mA

Luminous flux:

Viewing angle: 120°

Suitable for all SMT assembly methods

Compatible with infrared and vapor phase re-flow solder process

Compatible with automatic placement equipment

Doesn't contain restriction substance

Compliant with the RoHS Directive

Q45: 45-50lm

Q50: 50-55lm

Q55: 55-60lm

Torch

Head lights

Architectural lighting
