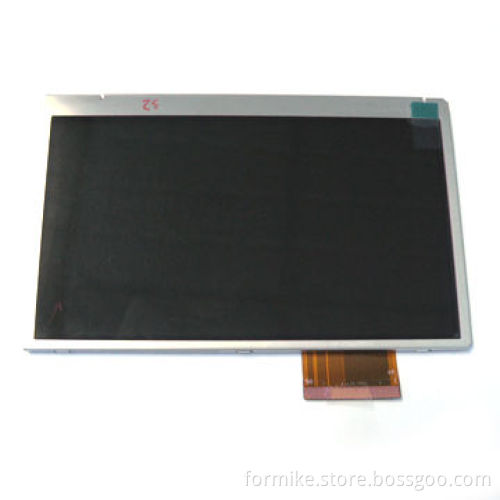

5.0-inch TFT LCD Module with Digital RGB Interface, Measures 120.7 x 75.8 x 4.21mm
  • 5.0-inch TFT LCD Module with Digital RGB Interface, Measures 120.7 x 75.8 x 4.21mm
5.0-inch TFT LCD Module with Digital RGB Interface, Measures 120.7 x 75.8 x 4.21mm

5.0-inch TFT LCD Module with Digital RGB Interface, Measures 120.7 x 75.8 x 4.21mm

Payment Type:
T/T
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T
Product Description
Product Description
  • Display area: 110.88 x 62.83 inches (5-inch diagonal)
  • Number of pixels: 480 x 3 x 272 pixels
  • Pixel pitch: 0.231 x 0.231mm
  • Color pixel arrangement: RGB vertical stripe
  • Display mode: normally white, TN
  • Number of colors: 16.7M
  • Optimum viewing angle: 6 o'clock
  • Brightness: 320cd/m2
  • Viewing angle: CR ≥10, 130 or 110
  • Electrical interface: TTL
  • Touch panel mode for wire resistance
  • Power consumption (with B/L): 0.8W
  • Module size: 120.7 x 75.8 x 4.21mm
  • Module weight: 80g
  • Backlight unit: LED x 10 pieces
