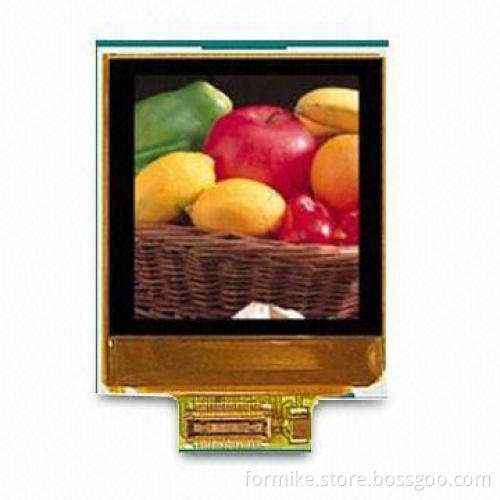

1.51-inch CSTN/Color Alphanumeric/LCD Module with 36.1 x 61.05 x 3.0mm Outline Dimension
  • 1.51-inch CSTN/Color Alphanumeric/LCD Module with 36.1 x 61.05 x 3.0mm Outline Dimension
1.51-inch CSTN/Color Alphanumeric/LCD Module with 36.1 x 61.05 x 3.0mm Outline Dimension

1.51-inch CSTN/Color Alphanumeric/LCD Module with 36.1 x 61.05 x 3.0mm Outline Dimension

Payment Type:
Telegraphic Transfer (TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer (TT,T/T)
Product Description
Product Description
  • Screen size: 1.51 inches (diagonal)
  • LCD type: CSTN negative transmissive
  • Resolution: 28 x RGB x 128 dots
  • Drive method: 1/128 duty and 1/12 bias
  • Viewing direction: 180 degrees
  • Color configuration: RGB vertical stripe
  • White LED backlight type
  • Interface: 8-bit data bus
  • Drive IC: ST7637 (supports 65K)
  • Viewing area: 29.5 x 29.2mm
  • Active area: 27.254 x 27.254mm
  • Pixel pitch: 0.071 x 0.213mm
  • Dots size: 0.061 x 0.203mm
  • Outline dimensions: 36.1 x 61.05 x 3.0mm
