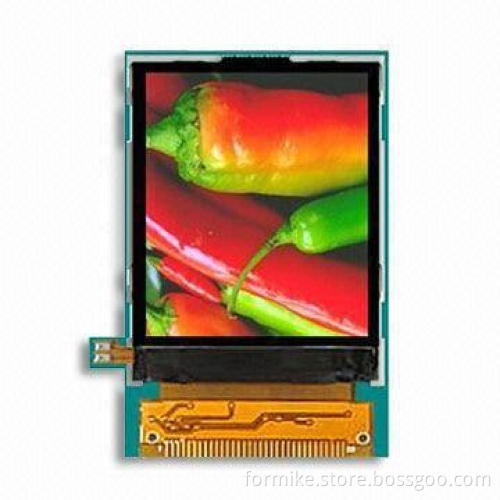

1.69-inch Color STN LCD Module with IC ST7669 Drive and 34 x 56.08 x 2.65mm Outline Size
  • 1.69-inch Color STN LCD Module with IC ST7669 Drive and 34 x 56.08 x 2.65mm Outline Size
1.69-inch Color STN LCD Module with IC ST7669 Drive and 34 x 56.08 x 2.65mm Outline Size

1.69-inch Color STN LCD Module with IC ST7669 Drive and 34 x 56.08 x 2.65mm Outline Size

Payment Type:
Telegraphic Transfer in Advance (Advance TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer in Advance (Advance TT, T/T)
Product Description
Product Description
  • Screen size: 1.69-inch (diagonal)
  • LCD type: CSTN
  • Display type: 128 x RGB x 160 dots
  • Drive method: 1/160 duty 1/13 bias
  • Viewing angle: 12 o'clock
  • Color configuration RGB vertical stripe
  • Backlight type white LED B/L
  • Interface 8-bit data bus
  • Drive IC ST7669 (supports 65K)
  • Polarization: negative or transmission
  • Dimensional outline: 34.0 x 56.08 x 2.65mm
  • Number of dots: 128 x 3 x 160 dots
  • Viewing area: 30.2 x 36.2mm
  • Active area: 26.79 x 33.59mm
  • Pixel pitch: 0.0698 x 0.21mm
  • Dots size: 0.0598 x 0.20mm
