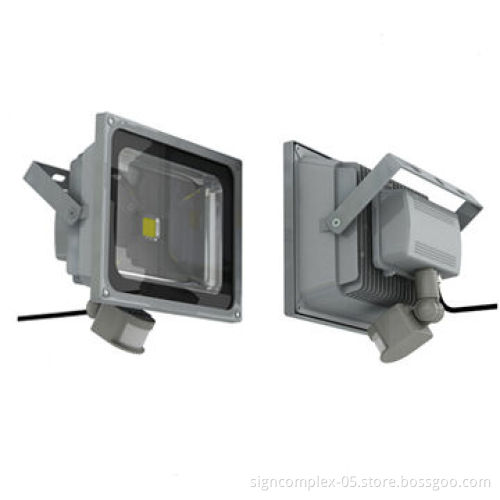

50W infrared and light detected LED floodlight can service over 50,000 hours/IP rating is up to Ip54

50W infrared and light detected LED floodlight can service over 50,000 hours/IP rating is up to Ip54

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Features:

Aluminum die-cast alloy body and toughened glass, durable
Good heat dissipation performance
IP rating is up to IP54
High utilization of power, PF ≥0.9
60% energy-saving than traditional ones
Use 1pc of integrated high-power COB chip
Service life over 50,000 hours
RoHS and CE certified

Technical parameters:

Input voltages: 100-240V AC, 50/60Hz.
Max current: 0.65A
LED type: COB
LED quantity: 1pc
Power: 50W
Shell color: grey, black
Net weight: 2.78kg
Gross weight: 3.18kg
Inner box size: 330*180*275mm
Container size: 745*345*290mm (4pcs per box)
Total weight: 13.6kg
Detection range: 180°
Detection distance： Max.12m (24℃) (Adjustable)
Delay time: 5 sec~6 min (Adjustable)
Environmental illumination: 2~2,000LUX (Adjustable)
Operating temperatures： -10~+40°C
Operating humidity： Smaller than 93% RH
Installation height： 1.8m~2.5m

Main applications:

Mainly used for floodlighting, facade decoration, factory, stadium, harbor, parking lot and street lighting

Instruction:

LUX:
- Can switch to day mode or night mode:
  - When switch to the “Sun”, the detector will work all day
  - When switch to the “Moon”, the detector will only work at night automatically
Time: Can adjust delay time of detector (5±2sec~6±1min)
Delay time means when the detector detect human, how much time it will be delayed to close itself after that person go out of the detect zone
Sense: It's the sensitivity of the detector, normally no need to adjust. If the sensitivity is too strong for you, you can adjust it to the minimum value

Aluminum die-cast alloy body and toughened glass, durable

Good heat dissipation performance

IP rating is up to IP54

High utilization of power, PF ≥0.9

60% energy-saving than traditional ones

Use 1pc of integrated high-power COB chip

Service life over 50,000 hours

RoHS and CE certified

Input voltages: 100-240V AC, 50/60Hz.

Max current: 0.65A

LED type: COB

LED quantity: 1pc

Power: 50W

Shell color: grey, black

Net weight: 2.78kg

Gross weight: 3.18kg

Inner box size: 330*180*275mm

Container size: 745*345*290mm (4pcs per box)

Total weight: 13.6kg

Detection range: 180°

Detection distance： Max.12m (24℃) (Adjustable)

Delay time: 5 sec~6 min (Adjustable)

Environmental illumination: 2~2,000LUX (Adjustable)

Operating temperatures： -10~+40°C

Operating humidity： Smaller than 93% RH

Installation height： 1.8m~2.5m

Mainly used for floodlighting, facade decoration, factory, stadium, harbor, parking lot and street lighting

LUX:

Can switch to day mode or night mode:
- When switch to the “Sun”, the detector will work all day
- When switch to the “Moon”, the detector will only work at night automatically

Time: Can adjust delay time of detector (5±2sec~6±1min)

Delay time means when the detector detect human, how much time it will be delayed to close itself after that person go out of the detect zone

Sense: It's the sensitivity of the detector, normally no need to adjust. If the sensitivity is too strong for you, you can adjust it to the minimum value

Can switch to day mode or night mode:
