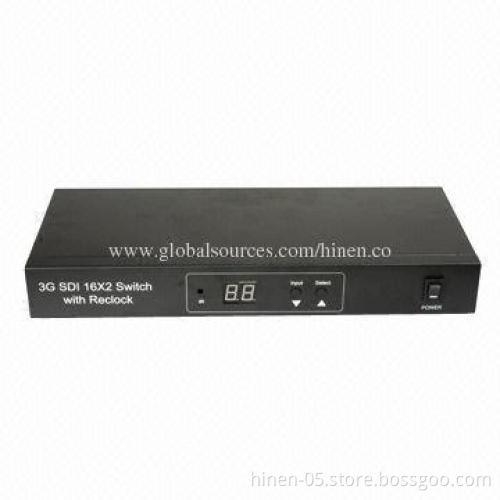

3G SDI 16 x 2 Switcher with Reclock, Supports Wide Range of Data Rate 270Mbps-2.97Gbps
  • 3G SDI 16 x 2 Switcher with Reclock, Supports Wide Range of Data Rate 270Mbps-2.97Gbps
  • 3G SDI 16 x 2 Switcher with Reclock, Supports Wide Range of Data Rate 270Mbps-2.97Gbps
3G SDI 16 x 2 Switcher with Reclock, Supports Wide Range of Data Rate 270Mbps-2.97Gbps
3G SDI 16 x 2 Switcher with Reclock, Supports Wide Range of Data Rate 270Mbps-2.97Gbps

3G SDI 16 x 2 Switcher with Reclock, Supports Wide Range of Data Rate 270Mbps-2.97Gbps

Get Latest Price
Payment Type:
Telegraphic Transfer in Advance (Advance TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer in Advance (Advance TT, T/T)
Product Description
Product Description
  • This is a switcher with 16 SDI input and 2 SDI output, anyone of the 16 SD-SDI, HD-SDI or 3G-SDI signals are switchable before transfer to the output, the two output the same SDI signal
  • The input signals can be switched by the button
  • While with RS232 interface, you can also switch the signals via computer system besides, the memory function makes it possible to return the last state after restarting or reconnecting
  • This product is specially designed with equalizer IC in its input and drive IC in its output
  • All of the input and output supports long coaxial cable
  • Supports multiple video resolution:
    • SD 480i at 525i and 625i
    • HD 720P at 24/25/30/50/60fps
    • HD 1,080i at 50/60fps
    • HD 1,080P at 24/25/30fps
    • 3G 1,080P at 50/60fps
  • Supports multiple colors space:
    • RGB or YCbCr 4:4:4 sampled
    • YCbCr 4:2:2 or 4:2:0 sampled
  • Support wide range of data rate: 270Mbps-2.97Gbps
  • Support multiple deep colors: 8, 10, 12-bit
  • Compatible with HD CCTV 1.0, HD-SDI (ST 292), 3G-SDI (ST 424) and SD-SDI (ST 259)
  • Supports reclock, can supports multiple slopes
  • Electrical protections:
    • Power reverse polarity protection
    • Power overvoltage protection, but voltage must <28V
  • ESD protect, contact discharge 8kV, air discharge 15kV
  • SD 480i at 525i and 625i
  • HD 720P at 24/25/30/50/60fps
  • HD 1,080i at 50/60fps
  • HD 1,080P at 24/25/30fps
  • 3G 1,080P at 50/60fps
  • RGB or YCbCr 4:4:4 sampled
  • YCbCr 4:2:2 or 4:2:0 sampled
  • Power reverse polarity protection
  • Power overvoltage protection, but voltage must <28V
