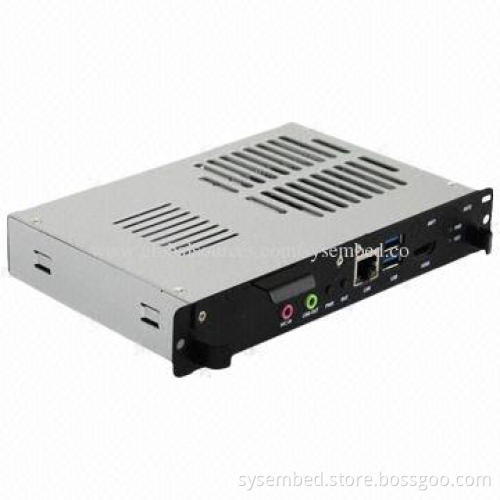

OPS Digital Signage System DS-810-a, 0-40°C Working Temperature
  • OPS Digital Signage System DS-810-a, 0-40°C Working Temperature
OPS Digital Signage System DS-810-a, 0-40°C Working Temperature

OPS Digital Signage System DS-810-a, 0-40°C Working Temperature

Get Latest Price
Payment Type:
Letter of Credit (LC, L/C)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Letter of Credit (LC, L/C)
Product Description
Product Description
  • Features:
    • Based on Intel HM76 chipset, with Intel I3/I5 chipset
    • 2 x HDMI, 1 x display port output, supports independent monitor display
    • 1 x Giga LAN, compatible with internet awake features
    • Compatible with Microsoft's Windows XP/7/8
    • 1 x mini PCIE slot, supports Wi-Fi
    • Compatible with OPS
  • Specifications:
    • Type: IBP-5043
    • Chassis color: black
    • Dimensions: 200x119x30mm
    • CPU: Intel sandy bridge/Ivy bridge i3/i5 processor
    • Chipset: Intel HM76
    • Memory: 1 SO-DIMM slot
    • Supports DDR3 1066/1333/1600, maximum 4G　　　
    • Storage SSD: N/A
    • Hard disk: 1 x 2.5-inch hard disk
    • Compact flash: N/A　　
    • I/O ports: network Realtek RTL 8111E
    • 10/100/1000Mbps
    • 1 x LAN
    • 1 x Wi-Fi
    • USB: 2.0 2 x USB2.0
    • Serial ports: 1 x RS232 (from OPS port)
    • Video Independent: 2 x HDMI/1 x display port
    • 1 x HDMI is in front panel, the other is OPS interface extension
    • Fanless: fan design
    • Audio: 1 x mic-in, 1 x line-out
    • LED power: LED
    • Antenna: Wi-Fi SMA connector (optional)
    • PS/2: N/A
    • Power: +12-19V DC OPS slot power supply
    • Reliability: mount drawer
    • Working temperature: 0-40°C
    • Humidity: 5-95% RH
    • Vibration: 0.5 grms/5-500Hz/random
  • Extension:
    • 1 x mini PCIe
    • 1 x PCIe
    • 1 x OPS interface
  • Based on Intel HM76 chipset, with Intel I3/I5 chipset
  • 2 x HDMI, 1 x display port output, supports independent monitor display
  • 1 x Giga LAN, compatible with internet awake features
  • Compatible with Microsoft's Windows XP/7/8
  • 1 x mini PCIE slot, supports Wi-Fi
  • Compatible with OPS
  • Type: IBP-5043
  • Chassis color: black
  • Dimensions: 200x119x30mm
  • CPU: Intel sandy bridge/Ivy bridge i3/i5 processor
  • Chipset: Intel HM76
  • Memory: 1 SO-DIMM slot
  • Supports DDR3 1066/1333/1600, maximum 4G　　　
  • Storage SSD: N/A
  • Hard disk: 1 x 2.5-inch hard disk
  • Compact flash: N/A　　
  • I/O ports: network Realtek RTL 8111E
  • 10/100/1000Mbps
  • 1 x LAN
  • 1 x Wi-Fi
  • USB: 2.0 2 x USB2.0
  • Serial ports: 1 x RS232 (from OPS port)
  • Video Independent: 2 x HDMI/1 x display port
  • 1 x HDMI is in front panel, the other is OPS interface extension
  • Fanless: fan design
  • Audio: 1 x mic-in, 1 x line-out
  • LED power: LED
  • Antenna: Wi-Fi SMA connector (optional)
  • PS/2: N/A
  • Power: +12-19V DC OPS slot power supply
  • Reliability: mount drawer
  • Working temperature: 0-40°C
  • Humidity: 5-95% RH
  • Vibration: 0.5 grms/5-500Hz/random
  • 1 x mini PCIe
  • 1 x PCIe
  • 1 x OPS interface
