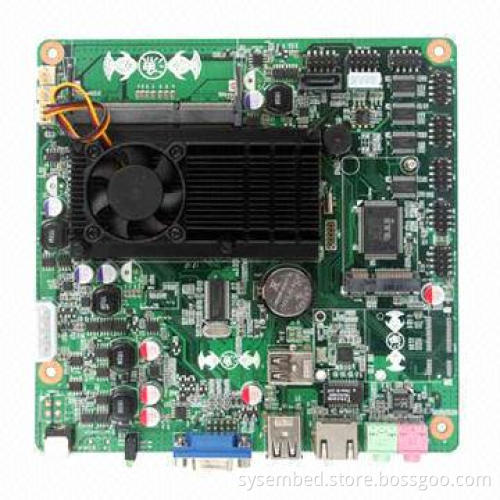

Mini-ITX Mainboard with Supports 800/1,066P Memory Up to 2GB, Intel NM10 Express Chipset
  • Mini-ITX Mainboard with Supports 800/1,066P Memory Up to 2GB, Intel NM10 Express Chipset
Mini-ITX Mainboard with Supports 800/1,066P Memory Up to 2GB, Intel NM10 Express Chipset

Mini-ITX Mainboard with Supports 800/1,066P Memory Up to 2GB, Intel NM10 Express Chipset

Get Latest Price
Payment Type:
Letter of Credit (LC, L/C)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Letter of Credit (LC, L/C)
Product Description
Product Description
  • Specifications:
    • Chipset: Intel NM10 express
    • Processor: Intel Atom dual-core D525 (1.80GHz)
    • Memory: 1 x SO DDRIII slot, supports 800/1,066P memory up to 2GB
    • Display: Intel GMA3150 graphics (shared memory 128/224MB)
    • Expansion interface: 1 x mini-PCIE slot (optional)
    • Audio: on board Realtek ALC662 6-channel HD audio mic, line-out
    • Storage devices: 1 x SATA II hard disk interface
    • Supports M-SATA SSD
    • Ethernet: 1 x Gigabit Ethernet interface
    • GPIO: 32-way customized
  • I/O interface:
    • 6 x RS232 (0, 2, 4, 6 optional)
    • 1 x VGA
    • 8 x USB2.0
    • 1 x audio I/O interface (microphone and line-out)
    • 1 x RJ_45 network interface
  • Other features:
    • Supported motherboard and hard disk encryption binding function, the system encrypts
    • Built-in USB dongle
    • Supports multiple coin counters
    • Supports 8-channel 10-bit A/D, 4-way 8 D/A
    • Supports 128 bytes of RAM space brownout protection
    • Watch dog timer: supports hardware reset function (256, 0 to 255 seconds)
    • Power supply: ATX
    • Operating temperature: -10-60°C
    • Relative humidity: 0-95% RH (non-condensing)
    • Dimensions: 170 x 170mm
  • Chipset: Intel NM10 express
  • Processor: Intel Atom dual-core D525 (1.80GHz)
  • Memory: 1 x SO DDRIII slot, supports 800/1,066P memory up to 2GB
  • Display: Intel GMA3150 graphics (shared memory 128/224MB)
  • Expansion interface: 1 x mini-PCIE slot (optional)
  • Audio: on board Realtek ALC662 6-channel HD audio mic, line-out
  • Storage devices: 1 x SATA II hard disk interface
  • Supports M-SATA SSD
  • Ethernet: 1 x Gigabit Ethernet interface
  • GPIO: 32-way customized
  • 6 x RS232 (0, 2, 4, 6 optional)
  • 1 x VGA
  • 8 x USB2.0
  • 1 x audio I/O interface (microphone and line-out)
  • 1 x RJ_45 network interface
  • Supported motherboard and hard disk encryption binding function, the system encrypts
  • Built-in USB dongle
  • Supports multiple coin counters
  • Supports 8-channel 10-bit A/D, 4-way 8 D/A
  • Supports 128 bytes of RAM space brownout protection
  • Watch dog timer: supports hardware reset function (256, 0 to 255 seconds)
  • Power supply: ATX
  • Operating temperature: -10-60°C
  • Relative humidity: 0-95% RH (non-condensing)
  • Dimensions: 170 x 170mm
