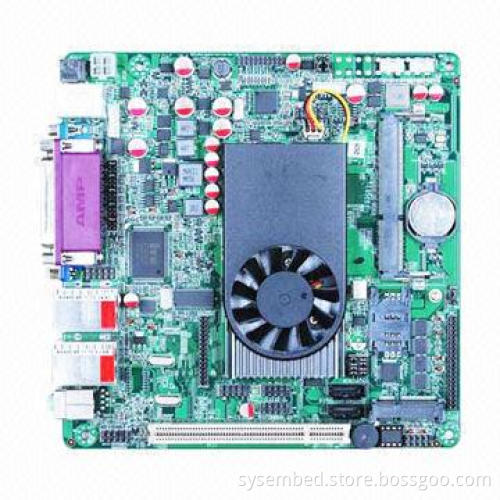

Industrial motherboard IMX-D525-a
  • Industrial motherboard IMX-D525-a
Industrial motherboard IMX-D525-a

Industrial motherboard IMX-D525-a

Get Latest Price
Payment Type:
T/T or Western Union
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T or Western Union
Product Description
Product Description
  • Specifications:
    • Chipset: Intel NM10 Express Chipset
    • Processor: Intel Atom dual core D525 (1.80GHz)
    • Memory: 1 x SO DDRIII slot, supports 800/1066 memory up to 2GB
    • Display: Intel GMA3150 graphics (shared memory 128/224MB)
    • Expansion interface: 1 x mini-PCIE slot (optional)
    • Audio: Onboard Realtek ALC662 6-channel HD audio MIC, line-out
    • Storage devices: 1 x SATAII hard disk interface
    • Supports M-SATA SSD
    • Ethernet: 1 x Gigabit Ethernet interface
    • GPIO: 32-way custom
    • I/O interfaces:
      • 6 x RS232 (0, 2, 4, 6 optional)
      • 1 x VGA
      • 8 x USB 2.0
      • 1 x audio I/O interface (microphone and line-out)
      • 1 x RJ_45 network interface
  • Other features:
    • Supported motherboard and hard disk encryption binding function, the system encrypts
    • Built-in USB dongle
    • Supports multiple coin counters
    • Supports 8 channels 10-bit A/D, 4-way 8 D/A
    • Supports 128 bytes of RAM space brownout protection
    • Watch dog timer: Supports hardware reset function (256, 0~255 seconds)
    • Power supply: ATX power supply
    • Operation temperature range: -10℃～60℃
    • Relative humidity: 0-95%, non-condensing
    • Dimension: 170mm x 170mm
  • Chipset: Intel NM10 Express Chipset
  • Processor: Intel Atom dual core D525 (1.80GHz)
  • Memory: 1 x SO DDRIII slot, supports 800/1066 memory up to 2GB
  • Display: Intel GMA3150 graphics (shared memory 128/224MB)
  • Expansion interface: 1 x mini-PCIE slot (optional)
  • Audio: Onboard Realtek ALC662 6-channel HD audio MIC, line-out
  • Storage devices: 1 x SATAII hard disk interface
  • Supports M-SATA SSD
  • Ethernet: 1 x Gigabit Ethernet interface
  • GPIO: 32-way custom
  • I/O interfaces:
    • 6 x RS232 (0, 2, 4, 6 optional)
    • 1 x VGA
    • 8 x USB 2.0
    • 1 x audio I/O interface (microphone and line-out)
    • 1 x RJ_45 network interface
  • 6 x RS232 (0, 2, 4, 6 optional)
  • 1 x VGA
  • 8 x USB 2.0
  • 1 x audio I/O interface (microphone and line-out)
  • 1 x RJ_45 network interface
  • Supported motherboard and hard disk encryption binding function, the system encrypts
  • Built-in USB dongle
  • Supports multiple coin counters
  • Supports 8 channels 10-bit A/D, 4-way 8 D/A
  • Supports 128 bytes of RAM space brownout protection
  • Watch dog timer: Supports hardware reset function (256, 0~255 seconds)
  • Power supply: ATX power supply
  • Operation temperature range: -10℃～60℃
  • Relative humidity: 0-95%, non-condensing
  • Dimension: 170mm x 170mm
