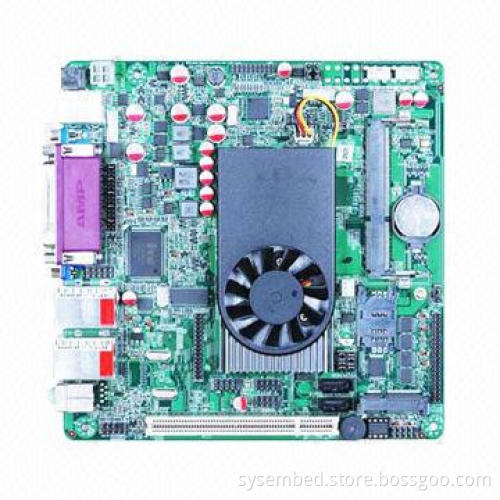

Mini-ITX Motherboard with 12V DC Power Supply, -40-85°C Storage Temperature
  • Mini-ITX Motherboard with 12V DC Power Supply, -40-85°C Storage Temperature
Mini-ITX Motherboard with 12V DC Power Supply, -40-85°C Storage Temperature

Mini-ITX Motherboard with 12V DC Power Supply, -40-85°C Storage Temperature

Get Latest Price
Payment Type:
T/T or Western Union
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T or Western Union
Product Description
Product Description
  • Specifications:
    • Chipset: Intel Atom D525 processor + ICH8 express chipset
    • Processor: Intel Atom D525 processor (45nm, 1.80GHz clock speed, 512k secondary cache)
    • Memory: on board 1333 DDR3 2GB memory (plus optional SODIMM sockets), maximum supports 4GB
    • Display: Intel GMA3150 graphics (shared memory 128/224MB)
    • 18 LVDS interface
    • Expansion:
      • 1 x mini PCI-SATA
      • 1 x mini PCI-E1X SIM card
    • Audio: Realtek ALC662 6-channel high-definition audio
    • Storage device: 2 x SATA 1 x 44P IDE
    • Ethernet: 1 x Realtek RTL8111EL PCI-E Gigabit Ethernet
    • External I/O interface:
      • 1 x 12V DC interface
      • 1 x VGA
      • 4 x USB2.0/1.1
      • 1 x Gigabit RJ45 connector
      • 2 x audio I/O ports (line-in, microphone and line-out)
    • Built-in I/O interface:
      • 1 x 30-pin LVDS connector
      • 6 x RS232, one of the 485 (with PS/2 combined)
      • 1 x GPIO (group 8 GPIO)
      • 1 x VGA 2 x 5 2.0
      • 1 x LPT 2 x 13 2.0
    • BIOS award 8MB DIP flash ROM
    • Other features: hardware setup calls boot, power boot (COMS performance beyond software settings)
    • Power supply: 12V DC (±2V DC)
    • Operating temperature: -10-60℃
    • Storage temperature: -40-85℃
    • Relative humidity: 0-95% RH (non-condensing)
    • Dimensions: 154.8 x 117.4mm
  • Chipset: Intel Atom D525 processor + ICH8 express chipset
  • Processor: Intel Atom D525 processor (45nm, 1.80GHz clock speed, 512k secondary cache)
  • Memory: on board 1333 DDR3 2GB memory (plus optional SODIMM sockets), maximum supports 4GB
  • Display: Intel GMA3150 graphics (shared memory 128/224MB)
  • 18 LVDS interface
  • Expansion:
    • 1 x mini PCI-SATA
    • 1 x mini PCI-E1X SIM card
  • Audio: Realtek ALC662 6-channel high-definition audio
  • Storage device: 2 x SATA 1 x 44P IDE
  • Ethernet: 1 x Realtek RTL8111EL PCI-E Gigabit Ethernet
  • External I/O interface:
    • 1 x 12V DC interface
    • 1 x VGA
    • 4 x USB2.0/1.1
    • 1 x Gigabit RJ45 connector
    • 2 x audio I/O ports (line-in, microphone and line-out)
  • Built-in I/O interface:
    • 1 x 30-pin LVDS connector
    • 6 x RS232, one of the 485 (with PS/2 combined)
    • 1 x GPIO (group 8 GPIO)
    • 1 x VGA 2 x 5 2.0
    • 1 x LPT 2 x 13 2.0
  • BIOS award 8MB DIP flash ROM
  • Other features: hardware setup calls boot, power boot (COMS performance beyond software settings)
  • Power supply: 12V DC (±2V DC)
  • Operating temperature: -10-60℃
  • Storage temperature: -40-85℃
  • Relative humidity: 0-95% RH (non-condensing)
  • Dimensions: 154.8 x 117.4mm
  • 1 x mini PCI-SATA
  • 1 x mini PCI-E1X SIM card
  • 1 x 12V DC interface
  • 1 x VGA
  • 4 x USB2.0/1.1
  • 1 x Gigabit RJ45 connector
  • 2 x audio I/O ports (line-in, microphone and line-out)
  • 1 x 30-pin LVDS connector
  • 6 x RS232, one of the 485 (with PS/2 combined)
  • 1 x GPIO (group 8 GPIO)
  • 1 x VGA 2 x 5 2.0
  • 1 x LPT 2 x 13 2.0
