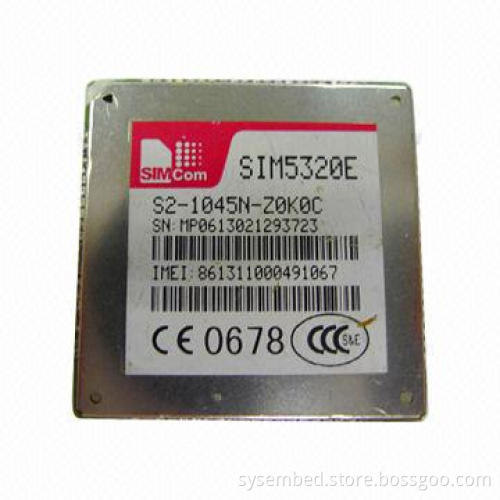

WCDMA Module, Supports HSDPA Up to 3.6Mbps for Downlink Data Transfer, SIM5320

WCDMA Module, Supports HSDPA Up to 3.6Mbps for Downlink Data Transfer, SIM5320

Get Latest Price

Payment Type:: T/T or Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or Western Union

Product Description

General features:

SIM5320A: dual-band UMTS/HSDPA 850/1,900MHz
Quad-band: GSM/GPRS/EDGE 850/900/1,800/1,900MHz
SIM5320E: dual-band UMTS/HSDPA 900/2,100MHz
Quad-band: GSM/GPRS/EDGE 850/900/1,800/1,900MHz
SIM5320J: dual-band UMTS/HSDPA 850 (800)/2,100MHz
Quad-band: GSM/GPRS/EDGE 850/900/1,800/1,900MHz
GPRS multi-slot: class 12
EDGE multi-slot: class 12
Output power:
- UMTS 850/1,900: 0.25W
- UMTS 900/2,100: 0.25W
- GSM850/GSM900: 2W
- DCS1800/PCS1,900: 1W
Control via AT commands
Supply voltage range: 3.4 to 4.2V
Operating temperature: -30 to +80°C
Extended operating temperature: -40 to +85°C
Dimensions: 30 x 30 x 2.9mm
Weight: 5.6g
Supports embedded script language: LUA

Specifications:

GPS/location:
- Cell assistant location (no GPS)
- A-GPS: MS-based, MS-assisted
- Standalone GPS
- Qualcomm xtra GPS mode
Data transfer:
- HSDPA maximum: 3.6Mbps (DL)
- WCDMA maximum: 384kbps (DL), 384kbps(UL)
EDGE class:
- Maximum 236.8kbps (DL), 118kbps (UL)
- GPRS: maximum 85.6kbps (DL), 42.8kbps (UL)
- CSD:
  - GSM data rate: 14.4kbps
  - WCDMA data rate: 57.6kbps
  - WCDMA: 64kbps CSD for video call
  - Multi-PDP connect application
- SMS:
  - Point-to-point MO and MT
  - Text and PDU mode
- Network identity and time zone (NITZ):
  - Supports in GSM and WCDMA
  - USB driver for Microsoft's Windows 2000/XP/Vista CE/mobile, Linux 2.6/Google's Android
  - Firmware update via USB
  - MMS
  - TCP/IP
  - MUX protocol: over UART
  - FTP/FTPS/HTTP/HTTPS/SMTP/POP3/DNS
  - FOTA
  - eCall ready
  - Jamming detection support
- Interface:
  - USB2.0
  - UART
  - SIM card
  - SPI
  - I2C
  - Keypad
  - Constant current sink
  - GPIO
  - RTC
  - ADC
  - PCM
- Certificates:
  - SIM5320A: FCC, PTCRB, IC, RoHS, REACH
  - SIM5320E: CE, GCF, RoHS, REACH, NCC

SIM5320A: dual-band UMTS/HSDPA 850/1,900MHz

Quad-band: GSM/GPRS/EDGE 850/900/1,800/1,900MHz

SIM5320E: dual-band UMTS/HSDPA 900/2,100MHz

Quad-band: GSM/GPRS/EDGE 850/900/1,800/1,900MHz

SIM5320J: dual-band UMTS/HSDPA 850 (800)/2,100MHz

Quad-band: GSM/GPRS/EDGE 850/900/1,800/1,900MHz

GPRS multi-slot: class 12

EDGE multi-slot: class 12

Output power:

UMTS 850/1,900: 0.25W
UMTS 900/2,100: 0.25W
GSM850/GSM900: 2W
DCS1800/PCS1,900: 1W

Control via AT commands

Supply voltage range: 3.4 to 4.2V

Operating temperature: -30 to +80°C

Extended operating temperature: -40 to +85°C

Dimensions: 30 x 30 x 2.9mm

Weight: 5.6g

Supports embedded script language: LUA

UMTS 850/1,900: 0.25W

UMTS 900/2,100: 0.25W

GSM850/GSM900: 2W

DCS1800/PCS1,900: 1W

GPS/location:

Cell assistant location (no GPS)
A-GPS: MS-based, MS-assisted
Standalone GPS
Qualcomm xtra GPS mode

Data transfer:

HSDPA maximum: 3.6Mbps (DL)
WCDMA maximum: 384kbps (DL), 384kbps(UL)

EDGE class:

Maximum 236.8kbps (DL), 118kbps (UL)
GPRS: maximum 85.6kbps (DL), 42.8kbps (UL)
CSD:
- GSM data rate: 14.4kbps
- WCDMA data rate: 57.6kbps
- WCDMA: 64kbps CSD for video call
- Multi-PDP connect application
SMS:
- Point-to-point MO and MT
- Text and PDU mode
Network identity and time zone (NITZ):
- Supports in GSM and WCDMA
- USB driver for Microsoft's Windows 2000/XP/Vista CE/mobile, Linux 2.6/Google's Android
- Firmware update via USB
- MMS
- TCP/IP
- MUX protocol: over UART
- FTP/FTPS/HTTP/HTTPS/SMTP/POP3/DNS
- FOTA
- eCall ready
- Jamming detection support
Interface:
- USB2.0
- UART
- SIM card
- SPI
- I2C
- Keypad
- Constant current sink
- GPIO
- RTC
- ADC
- PCM
Certificates:
- SIM5320A: FCC, PTCRB, IC, RoHS, REACH
- SIM5320E: CE, GCF, RoHS, REACH, NCC

Cell assistant location (no GPS)

A-GPS: MS-based, MS-assisted

Standalone GPS

Qualcomm xtra GPS mode

HSDPA maximum: 3.6Mbps (DL)

WCDMA maximum: 384kbps (DL), 384kbps(UL)

Maximum 236.8kbps (DL), 118kbps (UL)

GPRS: maximum 85.6kbps (DL), 42.8kbps (UL)

CSD:

GSM data rate: 14.4kbps
WCDMA data rate: 57.6kbps
WCDMA: 64kbps CSD for video call
Multi-PDP connect application

SMS:

Point-to-point MO and MT
Text and PDU mode

Network identity and time zone (NITZ):

Supports in GSM and WCDMA
USB driver for Microsoft's Windows 2000/XP/Vista CE/mobile, Linux 2.6/Google's Android
Firmware update via USB
MMS
TCP/IP
MUX protocol: over UART
FTP/FTPS/HTTP/HTTPS/SMTP/POP3/DNS
FOTA
eCall ready
Jamming detection support
