Description:

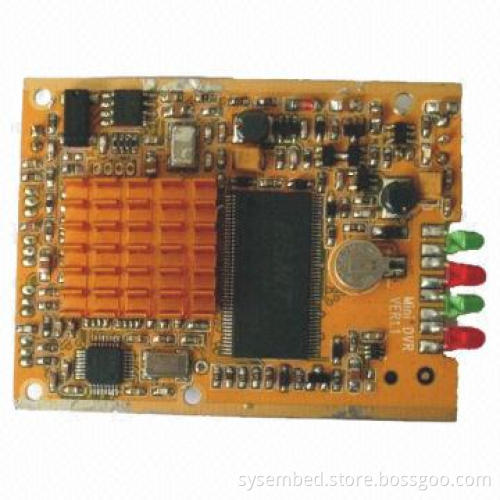

SVM101 is an ultra small SD card video recorder module, only 60x45mm, the use of MPEG-4 video compression technology, single-channel high-definition D1 (704x576), up to 30fps at D1, has a full-time, high-definition, low power consumption, easy to operate features
Supports boot, motion detection, timing, and other manual recording mode
Maximum supports 32GB SD card

Features:

MPEG-4 video compression: D1 (704*576) resolution
MPEG-4/ASF video format, MP3 audio format
Real-time stamp on videos, overwrite
Manual/motion detect/scheduled/power-up record
Audio input, audio compression 8KHz/ADPCM
SDHC memory support, up to 32GB
TV-out enables better resolution by TV set
AV-in, AV-put directly connect with camera, TV, monitor
Supports IR remote operation, built-in ADC for external keyboards
Supports manually snapshot, auto record by triggering port
Built-in RS232 series port, enables external remote, keyboard for operation and software set-up
5-35V for wide power supply
Low power-consumption, 1W when standby, 2W when recording
Board dimensions: 60*45mm
Net weight: 100g
