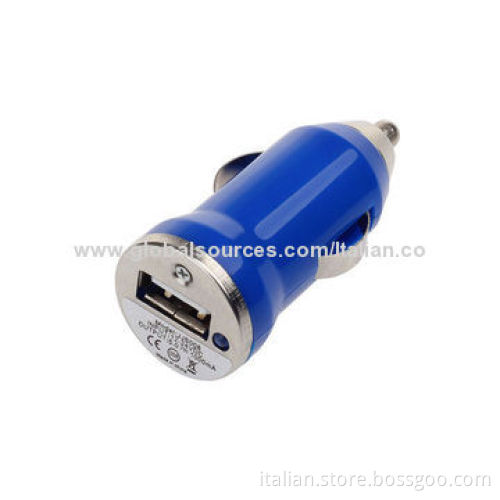

5V/1A USB Port In-car Charger for Mobile Phones with Short-circuit Protection

5V/1A USB Port In-car Charger for Mobile Phones with Short-circuit Protection

Get Latest Price

Payment Type:: D/P or T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	D/P or T/T

Product Description

Standard model number description: KRE-xxxyyyyC

XXX=030-480, the output voltage is 3.0-48.0V DC

YYYY=0001-4500, the output current is 0.001-4.50A

C=representing the in car charger type

Specifications:

Input voltage: 12-24V DC
USB output voltage: 5V DC
Total USB output current: 1,000mA
Ripple/noise: 100mV
Output voltage precision: 5%
Regulation: ±1% line, ±5% load

Features:

High-efficiency
Low-working temperature and low-ripple noise
LED indication
High-reliability
Light and convenient plug-in
With CE, FCC and RoHS approvals

Emission and immunity:

AS/NZS3548, AS/NZS4251.1 class B
CISPR22 Class B
CNS13438 Class B
EN55022 Class B
FCC part15 Class B
AS per latest regulation or directive of IEC
GB9254-1998/GB17625.1-2003
IEC61000-4-11, IEC61000-4-6
IEC61000-4-5, IEC61000-4-4
IEC61000-4-3, IEC61000-4-2
EN55024/A1:2001

Protections:

Thermal shutdown capability
Short-circuit protection
Over-voltage protection
Over-current protection

Description:

Intelligence IC chip inside
EMI filter minimum wave
Built-in IC chip, 100% full load burning test
Compact size and lightweight
Car charger has wide input voltage range
With short-circuit and overload protection
Soft-start current can reduce the AC input impact efficiency

Safety approvals:

AS/NZS 60950:2000, AS/NZS60065
UL1310, GB4943-2001
EN60950:2009, EN60065
PSE IEC60950, EN60065
CE (low-voltage directive)

Reliability:

Warranty: 2 years (limited)
MTBF: meet MIL-HDBK-217F over 50,000 hours, full load, 25°C
Customized designs are accepted
Installed with EMI filter minimum wave
Leakage current: 0.25mA maximum at 220V AC

Working environmental:

Storage humidity: 10 to 95% RH
Operating humidity: 10 to 95% RH
Storage temperature: -20 to 65°C
Operating temperature: 0 to 40°C

Input voltage: 12-24V DC

USB output voltage: 5V DC

Total USB output current: 1,000mA

Ripple/noise: 100mV

Output voltage precision: 5%

Regulation: ±1% line, ±5% load

High-efficiency

Low-working temperature and low-ripple noise

LED indication

High-reliability

Light and convenient plug-in

With CE, FCC and RoHS approvals

AS/NZS3548, AS/NZS4251.1 class B

CISPR22 Class B

CNS13438 Class B

EN55022 Class B

FCC part15 Class B

AS per latest regulation or directive of IEC

GB9254-1998/GB17625.1-2003

IEC61000-4-11, IEC61000-4-6

IEC61000-4-5, IEC61000-4-4

IEC61000-4-3, IEC61000-4-2

EN55024/A1:2001

Thermal shutdown capability

Short-circuit protection

Over-voltage protection

Over-current protection

Intelligence IC chip inside

EMI filter minimum wave

Built-in IC chip, 100% full load burning test

Compact size and lightweight

Car charger has wide input voltage range

With short-circuit and overload protection

Soft-start current can reduce the AC input impact efficiency

AS/NZS 60950:2000, AS/NZS60065

UL1310, GB4943-2001

EN60950:2009, EN60065

PSE IEC60950, EN60065

CE (low-voltage directive)

Warranty: 2 years (limited)

MTBF: meet MIL-HDBK-217F over 50,000 hours, full load, 25°C

Customized designs are accepted

Installed with EMI filter minimum wave

Leakage current: 0.25mA maximum at 220V AC

Storage humidity: 10 to 95% RH

Operating humidity: 10 to 95% RH

Storage temperature: -20 to 65°C

Operating temperature: 0 to 40°C
