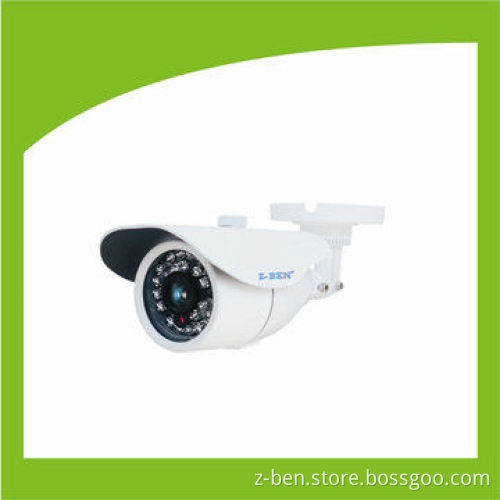

HD CVI Camera, Over-coaxial-cable Analog HD Video Transmission Standard, Which Use Same Transmission

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or L/C at Sight

Product Description

Model: ZB-C4012

IR LEDs: 24 pieces

IR distance: 20m

Megapixel: 3.6-6mm varifocal lens

720P:

Image sensor: 1/3-inch 1.3MP PC3100 CMOS/1/3-inch 1.3MP Sony IMX238 CMOS
Effective pixels:
- Main stream: 1,930 x 960P
- Sub stream: 704 x 576P
Electronic shutter: 4/25-1/45,000, 4/30-1/54,000 seconds
Video frame rate: 1,280x720P at 25fps/1,280x720P at 30fps, 1,280x720P at 50fps/1,280x720P at 60fps
Synchronization: internal
Minimum illumination: 0.01 Lux at F1.2 (0 Lux IR LED on)

1,080P:

Image sensor: 1/3-inch 2.1MP Sony IMX222 CMOS
Effective pixels:
- Main stream: 1,930 x 1,080P
- Sub stream: 704 x 576P
Electronic shutter: 1/3S-1/100,000 seconds
Video frame rate: 1,920x1,080P at 25fps/1,920x1,080P at 30fps/1,280x720P at 25fps/1,280x720P at 30fps/1,280x720P at 50fps/1,280x720P at 60fps
Synchronization: internal
Minimum illumination: 0.05 Lux at F1.2 (0 Lux IR LED on)

Image sensor: 1/3-inch 1.3MP PC3100 CMOS/1/3-inch 1.3MP Sony IMX238 CMOS

Effective pixels:
