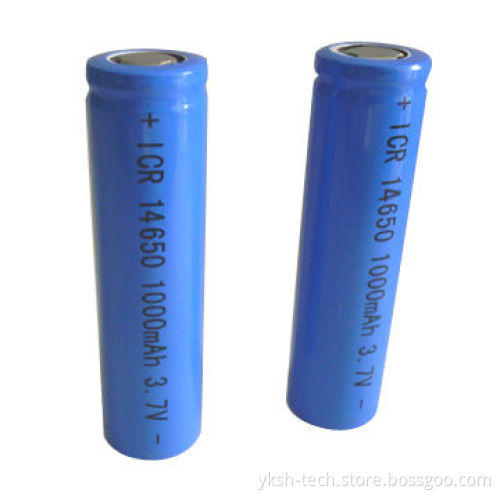

Cylindrical Lithium-ion Rechargeable Batteries, 3.7V, 1,000mAh Capacity for Cellphones
  • Cylindrical Lithium-ion Rechargeable Batteries, 3.7V, 1,000mAh Capacity for Cellphones
Cylindrical Lithium-ion Rechargeable Batteries, 3.7V, 1,000mAh Capacity for Cellphones

Cylindrical Lithium-ion Rechargeable Batteries, 3.7V, 1,000mAh Capacity for Cellphones

Get Latest Price
Payment Type:
T/T or L/C
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T or L/C
Product Description
Product Description
  • Specifications:
    • Rated voltage: 3.7V
    • Rated capacity (0.2C5A): 1,000mAh
    • Charge voltage: 4.2 ± 0.049V
    • Minimum cut-off discharge voltage: 2.75V
    • Maximum cut-off discharge voltage: 4.2V
    • Maximum continuous charge current: 1,000mAh
    • Maximum continuous discharge current: 1,000mAh
    • Battery diameter (maximum): 14 ± 0.2mm
    • Battery height (maximum): 65 ± 0.2mm
    • Interior resistance (20 ± 5°C): d80m©
    • (CC/CV) charge method and standard (20°C):
      • Quick mode, charge at 1,400mA to 4.2V, CC at 4.2V to current<20mA
      • Standard mode, charge at 280mA to 4.2V, CC at 4.2V to current<20mA
  • Application environment:
    • Charge at 0 to 45°C
    • Discharge at -20 to 60°C
    • Storage at -20 to 45°C, 65 ± 20% RH, air press 86 to106kPa
  • Standard test environment:
    • Temperature: 20 ± 5°C, <85% RH
  • Rated voltage: 3.7V
  • Rated capacity (0.2C5A): 1,000mAh
  • Charge voltage: 4.2 ± 0.049V
  • Minimum cut-off discharge voltage: 2.75V
  • Maximum cut-off discharge voltage: 4.2V
  • Maximum continuous charge current: 1,000mAh
  • Maximum continuous discharge current: 1,000mAh
  • Battery diameter (maximum): 14 ± 0.2mm
  • Battery height (maximum): 65 ± 0.2mm
  • Interior resistance (20 ± 5°C): d80m©
  • (CC/CV) charge method and standard (20°C):
    • Quick mode, charge at 1,400mA to 4.2V, CC at 4.2V to current<20mA
    • Standard mode, charge at 280mA to 4.2V, CC at 4.2V to current<20mA
  • Quick mode, charge at 1,400mA to 4.2V, CC at 4.2V to current<20mA
  • Standard mode, charge at 280mA to 4.2V, CC at 4.2V to current<20mA
  • Charge at 0 to 45°C
  • Discharge at -20 to 60°C
  • Storage at -20 to 45°C, 65 ± 20% RH, air press 86 to106kPa
  • Temperature: 20 ± 5°C, <85% RH
