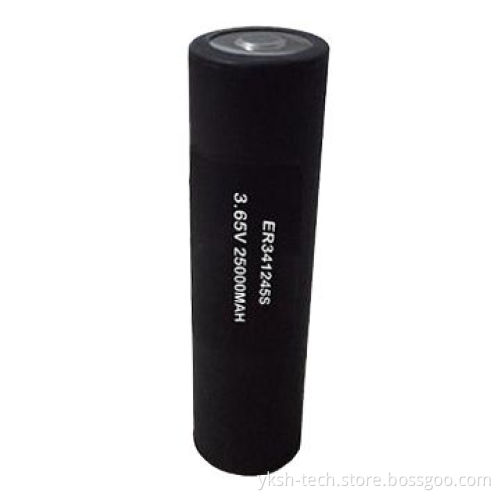

ER High-temperature Li-SOCL2 Battery, DD Size, 3.6V Rated Voltage, 25,000mAh Rated Capacity

Get Latest Price

Payment Type:: T/T or L/C

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or L/C

Product Description

Electrical performance:

Type value of battery storing 6 months at up to +30°C
Rated capacity: 25,000mAh
The discharge capacity measured when cutoff voltage is 2.0V, 200mA at +150
Open circuit voltage (+25): 3.65V
Maximum constant discharge current: 400mA (reach 100% of rated capacity at +150°C)
Maximum pulse discharge current: 800mA (at +150°C, discharge at 20mA till 50% capacity remaining, then constantly discharge at 20¼ A, at the same time to pulse discharge at 800mA and at the rate of 0.1 second per 2 minutes, battery voltage value is not lower than 2.7V, this value changes with pulse property, temperature and the battery situation that has been used)
Working temperature range: -20 to 150°C

Dimensions:

Diameter: 33.20mm (maximum)
Height: 124.50mm (maximum)

Weight: 220g

Storage:

Store batteries in the clean, dry and cool places, better in ambient environment of 20 or below, no more than +30°C at highest

Warning:

Do not charge, crash, disassemble the battery or dip it in the water or heat it over +160°C, otherwise lead to explode, fire and leak hazardous materials
Do not discard useless battery at random, suggest is bury it

We also can supply you ER14250S-600mAh, ER14505S-1,800mAh, ER25500S-5,500mAh, ER34615S-12,000mAh, ER251020S-12,000mAh, ER341245S-25,000mAh and more

Type value of battery storing 6 months at up to +30°C

Rated capacity: 25,000mAh

The discharge capacity measured when cutoff voltage is 2.0V, 200mA at +150

Open circuit voltage (+25): 3.65V

Maximum constant discharge current: 400mA (reach 100% of rated capacity at +150°C)

Maximum pulse discharge current: 800mA (at +150°C, discharge at 20mA till 50% capacity remaining, then constantly discharge at 20¼ A, at the same time to pulse discharge at 800mA and at the rate of 0.1 second per 2 minutes, battery voltage value is not lower than 2.7V, this value changes with pulse property, temperature and the battery situation that has been used)

Working temperature range: -20 to 150°C

Diameter: 33.20mm (maximum)

Height: 124.50mm (maximum)

Store batteries in the clean, dry and cool places, better in ambient environment of 20 or below, no more than +30°C at highest

Do not charge, crash, disassemble the battery or dip it in the water or heat it over +160°C, otherwise lead to explode, fire and leak hazardous materials

Do not discard useless battery at random, suggest is bury it
