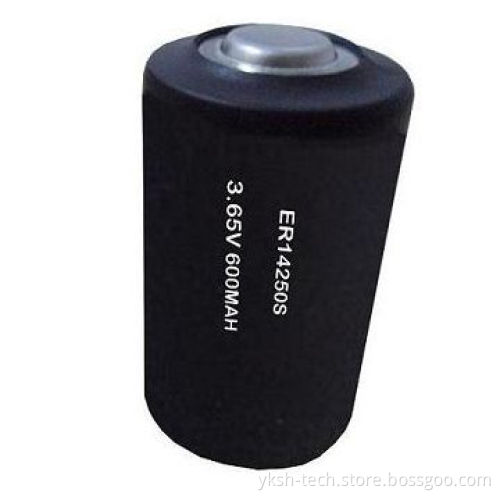

ER super capacitor lithium battery

Get Latest Price

Payment Type:: T/T or L/C

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or L/C

Product Description

Electrical performance (type value of battery storing 6 monthsat up to 30°C):

Rated capacity: 600mAh
Discharge capacity measured when cut-off voltage is 2.0V, 10mAat 150°C
Open circuit voltage (+25°C): 3.65V
Maximum constant discharge current: 50mA (reach 100% of ratedcapacity at +150°C)
Maximum pulse discharge current: 100mA (at +150°C,discharge at 10mA till 50% capacity remaining, then constantlydischarge at 20¼A, at the same time to pulse discharge at100mA and at the rate of 0.1 second per 2 minutes, battery voltagevalue is not lower than 2.7V, this value changes with pulseproperty, temperature and the battery situation that has beenused)
Working temperature range: -20 to 150°C

Dimensions:

Battery diameter (maximum): 14.65mm
Battery height (maximum): 25.2mm
Battery weight: 10g

Storage

Store batteries in the clean, dry and cool places, better inambient environment of 20°C or below, no more than 30°C athighest

Warning:

Do not charge, crash, disassemble the battery or dip it in thewater or heat it over 160°C, otherwise lead to explode, fireand leak hazardous materials
Do not discard useless battery at random, suggest buryingit

Also can supply you ER14,250S-600mAh, ER14505S-1800mAh,ER25500S-5500mAh, ER34615S-12000mAh, ER251020S-12000mAh,ER341245S-25000mAh and more

Rated capacity: 600mAh

Discharge capacity measured when cut-off voltage is 2.0V, 10mAat 150°C

Open circuit voltage (+25°C): 3.65V

Maximum constant discharge current: 50mA (reach 100% of ratedcapacity at +150°C)

Maximum pulse discharge current: 100mA (at +150°C,discharge at 10mA till 50% capacity remaining, then constantlydischarge at 20¼A, at the same time to pulse discharge at100mA and at the rate of 0.1 second per 2 minutes, battery voltagevalue is not lower than 2.7V, this value changes with pulseproperty, temperature and the battery situation that has beenused)

Working temperature range: -20 to 150°C

Battery diameter (maximum): 14.65mm

Battery height (maximum): 25.2mm

Battery weight: 10g

Store batteries in the clean, dry and cool places, better inambient environment of 20°C or below, no more than 30°C athighest

Do not charge, crash, disassemble the battery or dip it in thewater or heat it over 160°C, otherwise lead to explode, fireand leak hazardous materials

Do not discard useless battery at random, suggest buryingit
