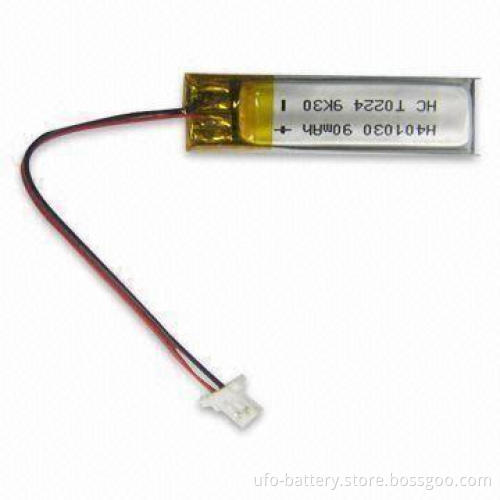

3.7V Rechargeable Li-Pol Battery with 4.20 ± 0.025V Charging Voltage and 90mAh Typical Capacity

Get Latest Price

Payment Type:: 30% T/T in Advance, Balance before Shipment or L/C

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	30% T/T in Advance, Balance before Shipment or L/C

Product Description

High capacity density

High safety, no burning, no explosion

Can use any object shape

Clean green energy and environment-friendly

Specifications:

Typical capacity: 90mAh
Nominal voltage: 3.7V
End voltage: 2.75V
Charging current (Std.): 0.2CA (=18mA)
Charging current (maximum): 1.0CA (=90mA)
Charging voltage: 4.20 ± 0.025V
Charging time (Std.): 6 to 7.0 hours
Charging time (maximum): 2 to 3.0 hours
Continuous discharging current (maximum): 90mAh
Discharging current (maximum.): 180mAh
Soft pack internal resistance (25°C): Pack dimensions: maximum 5 x 16 x 21.5mm
Weight: 1.9g

Applications:

Telecommunications: cellular phone, interphone and Bluetooth earphone.
Video devices: MP3/MP4/MP5, digital camera, portable DVD, portable television,
Portable devices: GPS, PDA, E-book, PMP, Sony's PSP, portable medical device and more
Illuminate devices: miner lamp and searchlight
Others: toys, RC models

All trademarks shown here are for reference purposes only. They are the property of their respective owners, and we are not authorized to sell items bearing such trademarks.

Typical capacity: 90mAh

Nominal voltage: 3.7V

End voltage: 2.75V

Charging current (Std.): 0.2CA (=18mA)

Charging current (maximum): 1.0CA (=90mA)

Charging voltage: 4.20 ± 0.025V

Charging time (Std.): 6 to 7.0 hours

Charging time (maximum): 2 to 3.0 hours

Continuous discharging current (maximum): 90mAh

Discharging current (maximum.): 180mAh

Soft pack internal resistance (25°C): Pack dimensions: maximum 5 x 16 x 21.5mm

Weight: 1.9g
