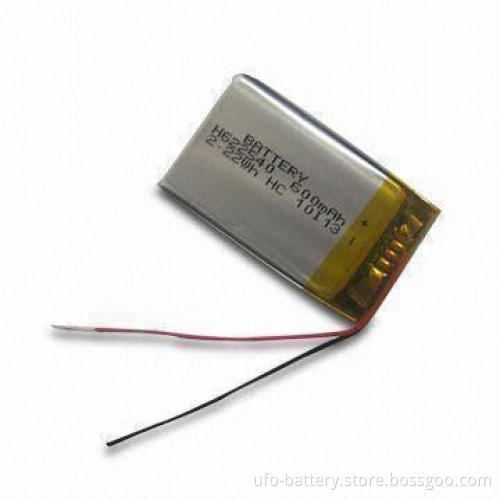

3.7V/600mAh Lithium Rechargeable Battery Pack for PDA/MP3 Player with 2.75V End Voltage
  • 3.7V/600mAh Lithium Rechargeable Battery Pack for PDA/MP3 Player with 2.75V End Voltage
3.7V/600mAh Lithium Rechargeable Battery Pack for PDA/MP3 Player with 2.75V End Voltage

3.7V/600mAh Lithium Rechargeable Battery Pack for PDA/MP3 Player with 2.75V End Voltage

Get Latest Price
Payment Type:
30% Deposit, Balance is Paid Off Before Shipment
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: 30% Deposit, Balance is Paid Off Before Shipment
Product Description
Product Description
  • Features:
    • High-capacity density
    • High-safety, no burning and explosion
    • Can use any object shape
    • Clean and eco-friendly
    • Certifications: CE and UL
    • Compliant with the RoHS Directive
  • Specifications:
    • Typical capacity: 600mAh
    • Nominal voltage: 3.7V
    • End voltage: 2.75V
    • Charging current: 0.2CA = 120mA
    • Charging current: 1.0CA = 600mA (maximum)
    • Charging voltage: 4.20 ±0.025V
    • Charging time: 6 to 7.0 hours (standard)
    • Charging time: 2 to 3.0 hours (maximum)
    • Continuous discharging current: 600mAh (maximum)
    • Discharging current: 1,200mAh (maximum)
    • Internal resistance: <170mΩ (25°)
    • Connector: ALEX 2510-3
    • Maximum dimensions (T x W x L): 6.6 x 20.5 x 49.50mm
    • Weight: 11.5g
  • Widely used in portable devices, audio and video devices such as PDA, GPS, MP3/MP4 player and E-book
  • High-capacity density
  • High-safety, no burning and explosion
  • Can use any object shape
  • Clean and eco-friendly
  • Certifications: CE and UL
  • Compliant with the RoHS Directive
  • Typical capacity: 600mAh
  • Nominal voltage: 3.7V
  • End voltage: 2.75V
  • Charging current: 0.2CA = 120mA
  • Charging current: 1.0CA = 600mA (maximum)
  • Charging voltage: 4.20 ±0.025V
  • Charging time: 6 to 7.0 hours (standard)
  • Charging time: 2 to 3.0 hours (maximum)
  • Continuous discharging current: 600mAh (maximum)
  • Discharging current: 1,200mAh (maximum)
  • Internal resistance: <170mΩ (25°)
  • Connector: ALEX 2510-3
  • Maximum dimensions (T x W x L): 6.6 x 20.5 x 49.50mm
  • Weight: 11.5g
