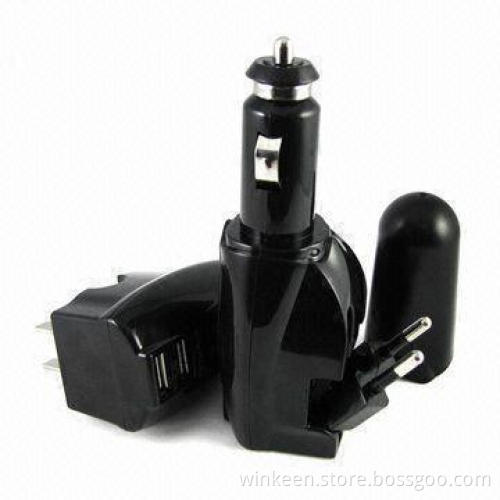

AC Power Adapter and Car Adapter Together with USB Output, Made of Plastic with ABS Material
  • AC Power Adapter and Car Adapter Together with USB Output, Made of Plastic with ABS Material
  • AC Power Adapter and Car Adapter Together with USB Output, Made of Plastic with ABS Material
AC Power Adapter and Car Adapter Together with USB Output, Made of Plastic with ABS Material
AC Power Adapter and Car Adapter Together with USB Output, Made of Plastic with ABS Material

AC Power Adapter and Car Adapter Together with USB Output, Made of Plastic with ABS Material

Get Latest Price
Payment Type:
T/T, L/C
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T, L/C
Product Description
Product Description
  • Technical specifications:
    • Material: plastic with ABS material
    • Input voltage: from 12V DC nominal/from 10 to 24V DC(maximum)
    • Input current: 1.0A at 12V DC (maximum)
    • 75% minimum at DC output full loading and nominal DC inputvoltage range
    • Output voltage:
    • Voltage: 5.0V
    • Range: 5.0 to 5.6V
    • Vpp: 200mA (maximum)
  • Output current: 0 to 1.5A DC
  • Protection: SCP for short circuited protection and withauto-recovery function
  • Operating temperature: 5 to 40 degrees Celsius
  • Storage temperature: -40 to 70 degrees Celsius
  • LED indication for nominal voltage value
  • Material: plastic with ABS material
  • Input voltage: from 12V DC nominal/from 10 to 24V DC(maximum)
  • Input current: 1.0A at 12V DC (maximum)
  • 75% minimum at DC output full loading and nominal DC inputvoltage range
  • Output voltage:
  • Voltage: 5.0V
  • Range: 5.0 to 5.6V
  • Vpp: 200mA (maximum)
  • Use your cigarette-lighter outlet to charge any devices thatcan rely on USB for power
  • This adapter can charge two USB devices simultaneously
  • This adapter is a both AC and DC to DC power transfer device,it can provide for a 500mA or 1,000mA DC output with constantvoltage source
  • To use it with any USB devices, simply connect a USB cable (notincluded) to your device(s) and then to the charger module
  • It is an ultimate accessory for any USB enabled devices totingroad warrior
  • Please consult your user manual of your device for the powerconsumption
  • Disclaimer: All trademarks shown here are for referencepurposes only. They are the property of their respective owners,and we are not authorized to sell items bearing suchtrademarks.
