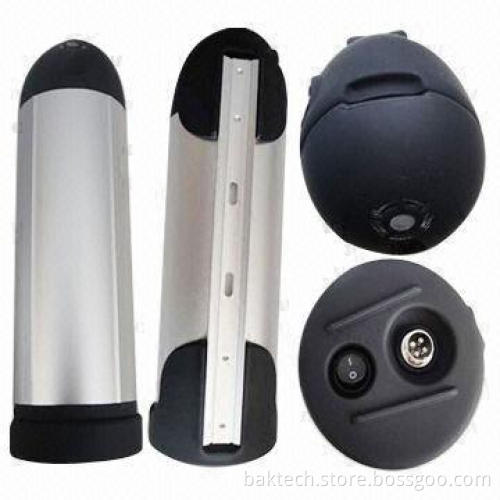

Motive Power Battery, LiFePO4 for Electronic Bicycle

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	L/C at Sight

Product Description

Nominal voltage: 25.6V

Weight: d3000g

Battery size: 330 x 110 x 75mm

Standard charge:

Fast charger:

Standard discharge:

Constant current: 2000mA

End voltage: 39V (23±2°C)

Constant current: 2000mA

Constant voltage: 54.6V, 100mA

Cut-off: (23±2°C)

Constant current: 5000mA

Constant voltage: 54.6V, 100mA

Cut-off: (23±2°C)

Fast discharge:

Constant current: 5000mA

End voltage: 39V (23±2°C)

Rated capacity: 10000mAh (standard charge then standarddischarge)

Fast discharger capacity: e9500mAh (standard charge then fastdischarge)

Cycle lifespan: standard charge, rest 10 minutes

Standard discharge, a cycle defined as one charge anddischarge

Carry out cycles until discharge capacity: d60%C5mAh

Cycle lifespan: e500

Maximum continuous charge current: 5A

Maximum continuous discharge current: 10A

Maximum discharge current: 20A, 500m/s

BMS and balance: at top

Charger: 54.6V, 2A

Cut-off: 200mA

Storage temperature range:

Temperature: 15 to 35°C

Relative humidity: 45 to 75%

Pressure: 86 to 106KPa

Charge temperature range: 0 to 45°C

Operation temperature range: 0 to 60°C
