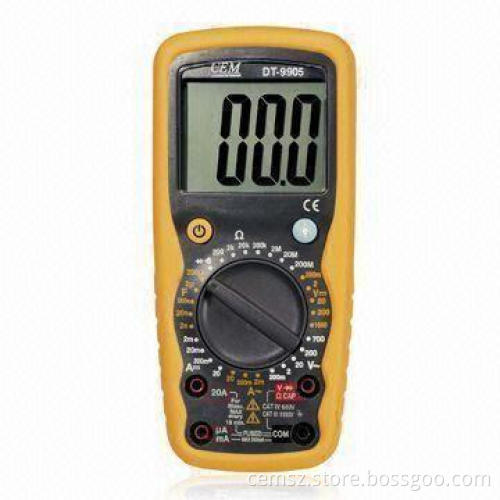

Digital Multimeters with High Performance and High Accuracy, Available in Data Hod Function

Get Latest Price

Payment Type:: T/T before Shipment or L/C

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T before Shipment or L/C

Product Description

Features:

2000 digital display counts with backlit
Data hold function
Auto power off and low battery indication
1000V over-voltage protection
Measurement rate: 2 times per second, nominal

Specifications:

DC voltage measurement:
Range: 200.0mV, 2.000V, 20.00V, 200.0V, 1000V
Basic accuracy: 0.5%
Resolution: 0.1mV, 1mV, 10mV, 100mV, 1V

AC voltage measurement:

Range: 200.0mV, 2.000V, 20.00V, 200.0V, 700V
Basic accuracy: 1.2%
Resolution: 0.1mV, 1mV, 10mV, 100mV, 1V

DC current measurement:

Range: 2.000mA, 20.00mA, 200.0mA, 20.00A
Basic accuracy: 2.5%
Resolution: 1uA, 10uA, 100uA, 10mA

AC current measurement:

Range: 2.000mA, 200.0mA, 20.00A
Basic accuracy: 3.0%
Resolution: 1uA, 100uA, 10mA

Resistance measurement:

Range: 200.0, , 2.000k, , 20.00k, , 200.0k, , 2.000M, , 20.00M,, 200.0MW
Basic accuracy: 0.8%
Resolution: 0.1&, 1&, 10&, 100&, 1k&,10k&, 10k&

Capacitance measurement:

Range: 2.000nF, 20.00nF, 200.0nF, 2.000uF, 200.0uF
Basic accuracy: 3.0%
Resolution: 1pF, 10pF, 0.1nF, 1nF, 0.1uF

Diode check and continuity test:

Diode test: test current of 1mA maximum, open circuit voltage2.8V DC typical

Continuity check: audible signal will sound if the resistanceis less than 50 (approx.), test current <0.3mA

Size (H x W x D): 182 x 82 x 55 mm

Weight: 360g

Accessories: test leads, 9V battery, gift box and carryingcase

2000 digital display counts with backlit

Data hold function

Auto power off and low battery indication

1000V over-voltage protection

Measurement rate: 2 times per second, nominal

DC voltage measurement:

Range: 200.0mV, 2.000V, 20.00V, 200.0V, 1000V

Basic accuracy: 0.5%

Resolution: 0.1mV, 1mV, 10mV, 100mV, 1V

Range: 200.0mV, 2.000V, 20.00V, 200.0V, 700V

Basic accuracy: 1.2%

Resolution: 0.1mV, 1mV, 10mV, 100mV, 1V

Range: 2.000mA, 20.00mA, 200.0mA, 20.00A

Basic accuracy: 2.5%

Resolution: 1uA, 10uA, 100uA, 10mA

Range: 2.000mA, 200.0mA, 20.00A

Basic accuracy: 3.0%

Resolution: 1uA, 100uA, 10mA

Range: 200.0, , 2.000k, , 20.00k, , 200.0k, , 2.000M, , 20.00M,, 200.0MW

Basic accuracy: 0.8%

Resolution: 0.1&, 1&, 10&, 100&, 1k&,10k&, 10k&

Range: 2.000nF, 20.00nF, 200.0nF, 2.000uF, 200.0uF

Basic accuracy: 3.0%

Resolution: 1pF, 10pF, 0.1nF, 1nF, 0.1uF
