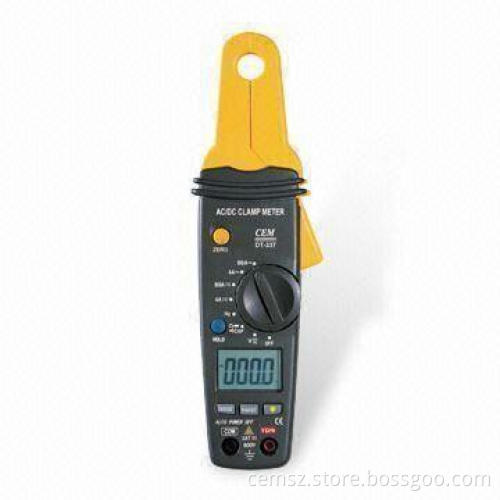

Mini AC/DC Clamp Meter with Frequency of 5Hz to 10MHz

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T before shipment or L/C at sight

Product Description

Designed to verify the presence of load current, voltage andresistance

The small body and clamp jaw fit perfectly in your hand

1mA high resolution for AC/DC current measurement

Features:

Jaw open to 0.5-inch

1mA high resolution

Digital clamp tester for AC/DC current measurement

Providing wide measuring range from very small to largecurrent

Designed to safety standard IEC 61010-2-032, CATIII 600V andpollution degree

Data and maximum hold function

Dynamic range of 4,000 counts full scale

Auto power off

Specifications:

Current AC/DC: 4A, 80A, ±(2.5% + 4d)

Voltage AC: 400mV to 600V, ±(2.0% + 4d)

Voltage DC: 400mV to 600V, ±(1.5% + 3d)

Resistance: 400 or 40M Ω

Frequency: 5Hz to 10MHz, 0.001Hz

Duty: 5 to 99.9%

Diode check: test current of 0.3mA

Open circuit voltage: 1.5V

Continuity check: threshold 50Ω, continuity beeper2.7kHz

Size (H x W x D): 210 x 70 x 37mm

Weight: 200g
