Electric Bolt with Narrow Panel, Low Surface Temperature and 12V DC Voltage

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T in Advance

Product Description

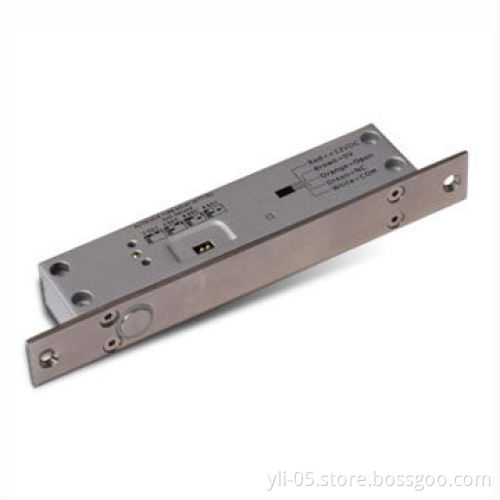

Electric Bolt with Narrow Panel, Low Surface Temperature

Fail safe: lock when energized

Face plate: 192 x 25 x 37mm

Strike: 100 x 25 x 3mm

Bolt: 17mm diameter, stainless steel 13mm throw

Voltage: 12V DC (24V DC)

Start current: 900mA

Standby current: 120mA

Solid bolt: polishing housing, 1,000kg holding force

Suitable for wooden doors, glass doors, metal doors and PVCdoors

Signal output: door status output, NO/NC/COM

Surface temperature: low temperature

Induction distance: 8mm

Operating temperature: -10 to 25 (14 to 131°F)

Operating humidity: 0 to 90% RH (non-condensing)

Special designed: tested to 500,000 cycles

Face place material: high aluminum, carrulous linefinished

Weight: 0.676kg

Standard packing: 24 pieces
