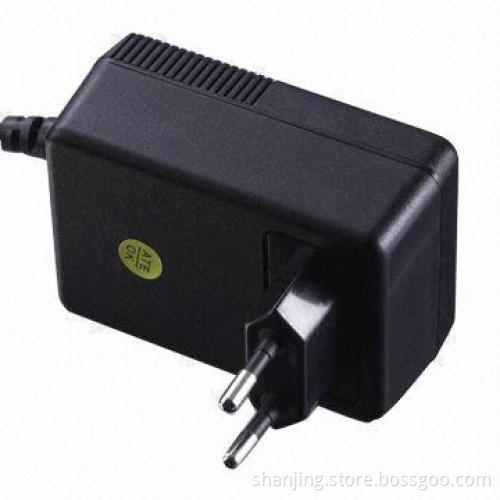

AC/DC Wall Mount Adapter CCTV Power Supply with 100-240 AC Input Voltages, 18 Watts, 12V 1.5A

AC/DC Wall Mount Adapter CCTV Power Supply with 100-240 AC Input Voltages, 18 Watts, 12V 1.5A

Get Latest Price

Payment Type:: T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

Features:

High price-effective, reliability with plastic crust
Built-in, over-voltage, over-current and short-circuitprotections
Certificates: CE, CCC and UL
Input:
- Voltages: 100 to 240V AC
- Frequencies: 50/60Hz and 0.8A
- Line regulation range: ±0.5 (maximum)
- Start up currents: 40A/230V AC
Output:
- Voltage: 12V/2A
- Line regulation range: ±0.5% (maximum)
- Ripple and noise (mVp-p): <1% of output voltage
- Adjustable range of output voltage: +5/-3%
- Start-up time: d1 second (input 240V AC)
- Hold-up time: e20 milliseconds (input 240V AC)
Protection:
- Over loading protections: 115 to 150% of rated power, when ithappened, the power shuts down automatically when trouble removedthe power recovers itself
- Over voltage protection: 130 to 150% of rated voltage
- Short circuit protection
- Insulation intensity
- Input/output: 3,000V/10mA, 60 seconds
- Insulation resistance
- Input/output impedance: e50m©, 500V DC

Environmental requirements:

Operating temperatures: 0 to 40°C
Operating humidity range: 10 to 90% RH (no freezing dew)
Storage temperatures: -20 to 85°C
Storage humidity range: 10 to 95% RH (no freezing dew)
Elevation: <3,000m
Dimensions (L x W x H): 79 x 55 x 35mm
Weight: 230g
EMC: EN55022B, GB9254

High price-effective, reliability with plastic crust

Built-in, over-voltage, over-current and short-circuitprotections

Certificates: CE, CCC and UL

Input:

Voltages: 100 to 240V AC
Frequencies: 50/60Hz and 0.8A
Line regulation range: ±0.5 (maximum)
Start up currents: 40A/230V AC

Output:

Voltage: 12V/2A
Line regulation range: ±0.5% (maximum)
Ripple and noise (mVp-p): <1% of output voltage
Adjustable range of output voltage: +5/-3%
Start-up time: d1 second (input 240V AC)
Hold-up time: e20 milliseconds (input 240V AC)

Protection:

Over loading protections: 115 to 150% of rated power, when ithappened, the power shuts down automatically when trouble removedthe power recovers itself
Over voltage protection: 130 to 150% of rated voltage
Short circuit protection
Insulation intensity
Input/output: 3,000V/10mA, 60 seconds
Insulation resistance
Input/output impedance: e50m©, 500V DC

Voltages: 100 to 240V AC

Frequencies: 50/60Hz and 0.8A

Line regulation range: ±0.5 (maximum)

Start up currents: 40A/230V AC

Voltage: 12V/2A

Line regulation range: ±0.5% (maximum)

Ripple and noise (mVp-p): <1% of output voltage

Adjustable range of output voltage: +5/-3%

Start-up time: d1 second (input 240V AC)

Hold-up time: e20 milliseconds (input 240V AC)

Over loading protections: 115 to 150% of rated power, when ithappened, the power shuts down automatically when trouble removedthe power recovers itself

Over voltage protection: 130 to 150% of rated voltage

Short circuit protection

Insulation intensity

Input/output: 3,000V/10mA, 60 seconds

Insulation resistance

Operating temperatures: 0 to 40°C

Operating humidity range: 10 to 90% RH (no freezing dew)

Storage temperatures: -20 to 85°C

Storage humidity range: 10 to 95% RH (no freezing dew)

Elevation: <3,000m

Dimensions (L x W x H): 79 x 55 x 35mm

Weight: 230g
