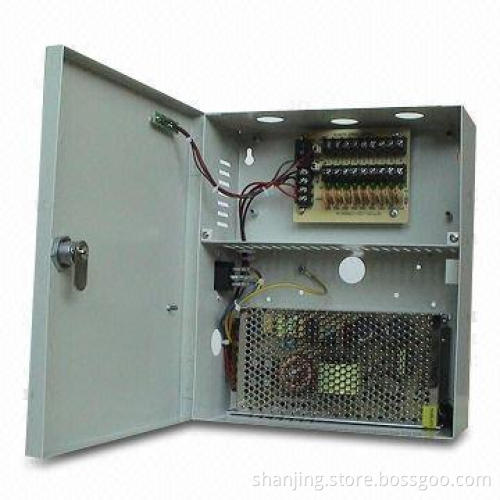

CCTV power supply, with 100 to 240V AC input, 12V DC/10A output, 9/18-way

CCTV power supply, with 100 to 240V AC input, 12V DC/10A output, 9/18-way

Get Latest Price

Payment Type:: T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

Specifications:

Input voltages: 100 to 240V AC
Input frequency range: 50/60Hz
Output voltage: 12V DC ±5%
Total output current: 10A
Total outputs: 9
Fuse type: PTC (resettable)
Fuse rating: 2A
Compliant with CE standards and the RoHS Directive
Packing dimensions: 250 x 215 x 94mm
Net weight: 2.3kg

Features:

General protection: each output has independent PTC fuse andLED indicator, when problem occurs, only affect the independentoutput, other outputs will still work
Short-circuit protection: when short condition occurs,independent PTC fuse will open the circuit, when condition removed,PTC fuse will automatically back to close
High-voltage protection: when high-voltage occurs, the surgeprotection will be hit through to protect the connected device
Over-current protection: when over-current occurs, the powersupply will automatically switch to self-protection status, whencondition removed, then switch back to normal

Applications: CCTV cameras, PTZ, IR illuminators, videoprocessors, access controls and others

Input voltages: 100 to 240V AC

Input frequency range: 50/60Hz

Output voltage: 12V DC ±5%

Total output current: 10A

Total outputs: 9

Fuse type: PTC (resettable)

Fuse rating: 2A

Compliant with CE standards and the RoHS Directive

Packing dimensions: 250 x 215 x 94mm

Net weight: 2.3kg

General protection: each output has independent PTC fuse andLED indicator, when problem occurs, only affect the independentoutput, other outputs will still work

Short-circuit protection: when short condition occurs,independent PTC fuse will open the circuit, when condition removed,PTC fuse will automatically back to close

High-voltage protection: when high-voltage occurs, the surgeprotection will be hit through to protect the connected device

Over-current protection: when over-current occurs, the powersupply will automatically switch to self-protection status, whencondition removed, then switch back to normal
