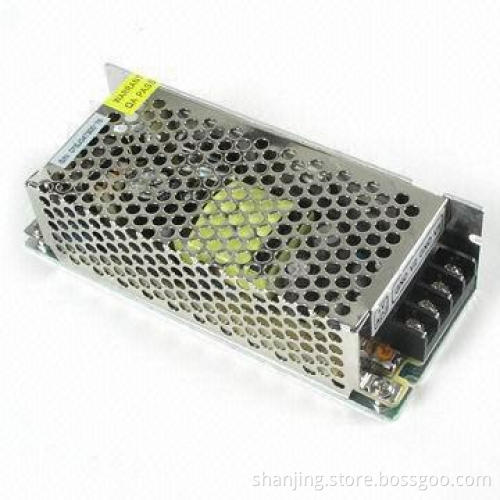

Industrial Power Supply for Electronic Equipment, House Appliances and Security System

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

Features:

Input:

Output:

Protection:

Over loading protection: 115%-150% of rated power

Over voltage protection: 130%-150% of rated voltage

Over current protection

Built in over voltage, over current and short circuitprotection

176V AC to 264V AC

Frequency: 50/60Hz

Line regulation range: ±0.5 maximum

Input current: <0.6A

Line regulation range: ±0.5% maximum

Ripple and noise (Vpp): <1% of output voltage

Adjustable range of output voltage: +5%, -3%

Turn-on time: d1s when AC input 240V and Io=100%

Hold-up time: e20ms when AC input 240V and Io=100%

Withstand voltage:

In-out: 1,500V AC/5mA, 60s

In-ground: 1,500V AC/5mA, 60s

Out-ground: 500V AC/5mA, 60s

Insulated resistance:

In-out: e50mA, DC 500V AC

In-ground: e50mA, DC 500V AC

Out-ground: e50mA, DC 500V AC

Environmental requirements:

Operating temperature: 0 to 40 degrees Celsius

Operating humidity: 10% to 90% RH (no freezing dew)

Storage temperature: -20 to 85 degrees Celsius

Storage humidity: 10% to 95% RH (no freezing dew)

Elevation: <3,000m

Dimensions: (L) 143 x (W) 59 ()H) 39mm

Weight: 300g

EMC: EN55022B, GB9254
