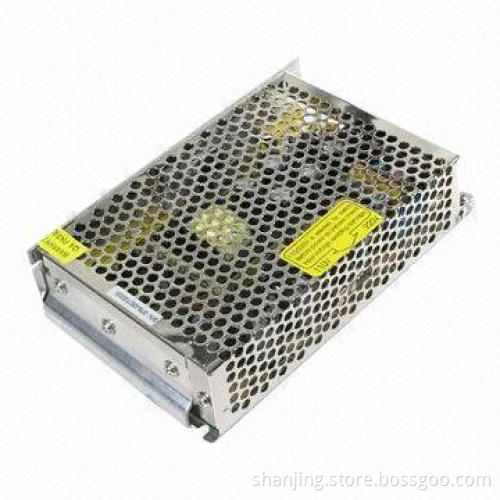

12V/5A/60W LED Power Supply for LED Strips and Screens
  • 12V/5A/60W LED Power Supply for LED Strips and Screens
12V/5A/60W LED Power Supply for LED Strips and Screens

12V/5A/60W LED Power Supply for LED Strips and Screens

Get Latest Price
Payment Type:
T/T
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T
Product Description
Product Description
  • Features:
    • High reliability with industry standards
    • Built-in over voltage, over current and short circuitprotection
    • Input:
      • Voltage: 110 or 220V AC
      • Frequency: 50/60Hz
      • Start up current: 40A at 230V AC
      • Input current: <1.5A
    • Output:
      • Voltage: 12V/5A
      • Maximum line regulation range: 0.5
      • Ripple and noise: <1of output voltage
      • Start-up time: 1 second (240V AC input voltage and 100%Io)
      • Hold-up time: 20 milliseconds (240V AC input)
    • Protection:
      • Over loading protection: 115 to 150% of rated power
      • Over voltage protection: 130 to 150% of rated voltage
      • Short circuit protection
    • Withstand voltage:
      • Input to output: 1,500V AC/5mA, 60 seconds
      • Input to ground: 1,500V AC/5mA, 60 seconds
      • Output to ground: 500V AC/5mA, 60 seconds
    • Insulation resistance:
      • Input to output: 500V AC
      • Input to ground: 500V AC
      • Output to ground:500V AC
    • Environmental requirements:
      • Operating temperature: 0 to 40 °C
      • Operating humidity: 10 to 90% RH (no freezing dew)
      • Storage temperature: -20 to 85°C
      • Storage humidity: 10 to 95% RH (no freezing dew)
    • Elevation: <3,000m
    • Dimensions (L x W x H): 159 x 97 x 38mm
    • Weight: 550g
    • EMC: EN55022B and GB9254
  • High reliability with industry standards
  • Built-in over voltage, over current and short circuitprotection
  • Input:
    • Voltage: 110 or 220V AC
    • Frequency: 50/60Hz
    • Start up current: 40A at 230V AC
    • Input current: <1.5A
  • Output:
    • Voltage: 12V/5A
    • Maximum line regulation range: 0.5
    • Ripple and noise: <1of output voltage
    • Start-up time: 1 second (240V AC input voltage and 100%Io)
    • Hold-up time: 20 milliseconds (240V AC input)
  • Protection:
    • Over loading protection: 115 to 150% of rated power
    • Over voltage protection: 130 to 150% of rated voltage
    • Short circuit protection
  • Withstand voltage:
    • Input to output: 1,500V AC/5mA, 60 seconds
    • Input to ground: 1,500V AC/5mA, 60 seconds
    • Output to ground: 500V AC/5mA, 60 seconds
  • Insulation resistance:
    • Input to output: 500V AC
    • Input to ground: 500V AC
    • Output to ground:500V AC
  • Environmental requirements:
    • Operating temperature: 0 to 40 °C
    • Operating humidity: 10 to 90% RH (no freezing dew)
    • Storage temperature: -20 to 85°C
    • Storage humidity: 10 to 95% RH (no freezing dew)
  • Elevation: <3,000m
  • Dimensions (L x W x H): 159 x 97 x 38mm
  • Weight: 550g
  • EMC: EN55022B and GB9254
  • Voltage: 110 or 220V AC
  • Frequency: 50/60Hz
  • Start up current: 40A at 230V AC
  • Input current: <1.5A
  • Voltage: 12V/5A
  • Maximum line regulation range: 0.5
  • Ripple and noise: <1of output voltage
  • Start-up time: 1 second (240V AC input voltage and 100%Io)
  • Hold-up time: 20 milliseconds (240V AC input)
  • Over loading protection: 115 to 150% of rated power
  • Over voltage protection: 130 to 150% of rated voltage
  • Short circuit protection
  • Input to output: 1,500V AC/5mA, 60 seconds
  • Input to ground: 1,500V AC/5mA, 60 seconds
  • Output to ground: 500V AC/5mA, 60 seconds
  • Input to output: 500V AC
  • Input to ground: 500V AC
  • Output to ground:500V AC
  • Operating temperature: 0 to 40 °C
  • Operating humidity: 10 to 90% RH (no freezing dew)
  • Storage temperature: -20 to 85°C
  • Storage humidity: 10 to 95% RH (no freezing dew)
