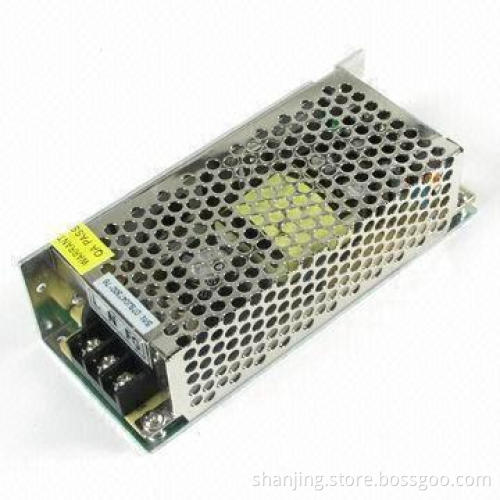

60W Switching Power Supply, Metal Case in 12V 5A/24V 2.5A for CCTV Security Camera Device/90-264V AC

60W Switching Power Supply, Metal Case in 12V 5A/24V 2.5A for CCTV Security Camera Device/90-264V AC

Get Latest Price

Payment Type:: T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

Input:

Voltage: 176 to 264V AC
Frequency: 50/60Hz at <1A
Line regulation range: ±0.5 (maximum_

Output:

Line regulation range: ±0.5% (maximum)
Ripple and noise (mVp-p): <1% of output voltage
Adjustable range of output voltage: ±3%
Start-up time: d1s (input 240V AC and Io = 100%)
Hold-up time: e20ms (input 240V AC and Io = 100%)

Protections:

Overloading protection: 115 to 150% of rated power, when ithappened, the power shuts down automatically, when trouble removedthe power recovers itself
Over-voltage protection: 130 to 150% of rated voltage
Over-current protection

Insulation intensity:

Input/output: 1,500V/5mA, 60 seconds
Input/ground: 1,500V/5mA, 60 seconds
Output/ground: 500V/5mA, 60 seconds

Insulation intensity:

Input/output: 1,500V/5mA, 60 seconds
Input/ground: 1,500V/5mA, 60 seconds
Output/ground: 1,500V/5mA, 60 seconds

Environmental requirement:

Operating temperature: 0 to 40°C
Operating humidity: 10 to 90% RH (no freezing dew)
Storage temperature: -20 to 85°C
Storage humidity: 10 to 95% RH (no freezing dew)

Elevation: <3,000m

Dimensions (L x W x H): 143 x 59 x 39mm

Weight: 300g

EMC: EN55022 and GB3954

Voltage: 176 to 264V AC

Frequency: 50/60Hz at <1A

Line regulation range: ±0.5 (maximum_

Line regulation range: ±0.5% (maximum)

Ripple and noise (mVp-p): <1% of output voltage

Adjustable range of output voltage: ±3%

Start-up time: d1s (input 240V AC and Io = 100%)

Hold-up time: e20ms (input 240V AC and Io = 100%)

Overloading protection: 115 to 150% of rated power, when ithappened, the power shuts down automatically, when trouble removedthe power recovers itself

Over-voltage protection: 130 to 150% of rated voltage

Over-current protection

Input/output: 1,500V/5mA, 60 seconds

Input/ground: 1,500V/5mA, 60 seconds

Output/ground: 500V/5mA, 60 seconds

Input/output: 1,500V/5mA, 60 seconds

Input/ground: 1,500V/5mA, 60 seconds

Output/ground: 1,500V/5mA, 60 seconds

Operating temperature: 0 to 40°C

Operating humidity: 10 to 90% RH (no freezing dew)

Storage temperature: -20 to 85°C

Storage humidity: 10 to 95% RH (no freezing dew)
