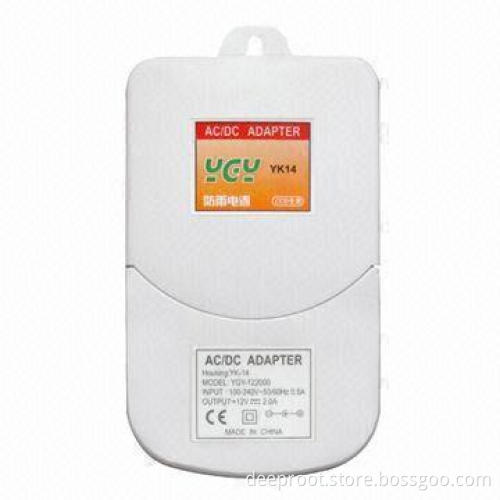

AC/DC Adapter with 50 to 60Hz Frequency and 24W Max Output Power

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Specifications:

Input connecting plug: others

Input voltage: 100 to 240V AC

Frequency: 50/60Hz

Output connector: others

Output voltage: 3 to 24V DC ±5%

Maximum power: 24W

Ripple wave (mVp-p):

Linear modulate: ±0.5% (maximum)

Temperature coefficient: ±0.02%/°C

Starting time: ≤3s (240V AC input, IO= 100%)

Guard time: ≥20ms (240V AC input, IO= 100%)

Output standard: 12V, 1A/12V, 2A

Override protection: 115 to 200%VA, automatic recovery

short-circuit protection: 1 channel, automatic recovery

Insulation strength: 1,500V AC/10mA, 1 minute

Insulation resistance: ≥30MΩ, 500V DC

Environment working temperature: 0 to 40°C, 10 to 90% RH

Store temperature: -20 to 60°C, 10 to 90% RH

Dimensions: 160 x 75 x 40mm

Net weight: 137g
