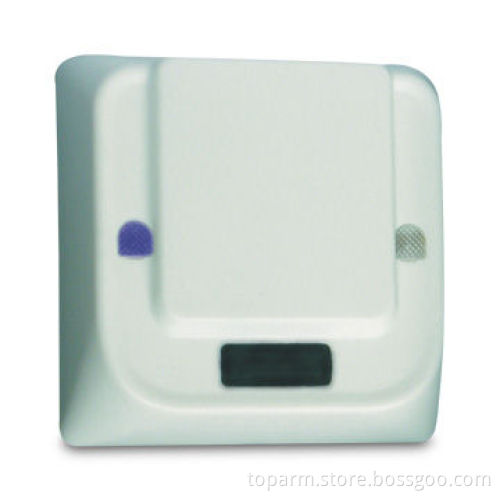

Tri-technology Microwave Intruder Detector with 1 to 15m Sensitivity and 15m Anti-mask Distance

Get Latest Price

Payment Type:: T/T or L/C at Sight

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or L/C at Sight

Product Description

Specifications:

Detection mode: MRD-PLUS dual microwave system and activeinfrared
Microwave frequency: meet FCC standard by 10.525 and10.325GHz
Detection range: 15 x 15m
Anti-mask distance: 0 to 15m
Operating temperatures: -25 to 55°C
Relative humidity: 5 to 95% RH
Detection sensitivity: 1 to 15m (adjustable)
Auto temperature compensation: digital temperaturecompensation
Power supply: 9.5 to 15V DC, 18mA
Alarm output: 35V DC, 150mA (maximum)
Tamper output: NC contacts, 60V AC, 500mA
Response speed: 0. 2 and 2m/second
White light immunity: free from any light
Pet immunity: below 35kg
RF immunity: 52V/m, 10 to 1,000MHz
Dimensions: 86 x 86 x 28mm
Weight: 150g

Features:

The original 100% hidden-application: the sensor can be hiddenbehind the picture or most of common materials, reflecting thehighest level of security structures, such as museums, exchequers,archives and more
The original MRD-PLUS technology, the change of the surroundingtemperature will not interfere the detection range at all
Anti-mask range 15m, the detecting performance won't beaffected within the detection range

Detection mode: MRD-PLUS dual microwave system and activeinfrared

Microwave frequency: meet FCC standard by 10.525 and10.325GHz

Detection range: 15 x 15m

Anti-mask distance: 0 to 15m

Operating temperatures: -25 to 55°C

Relative humidity: 5 to 95% RH

Detection sensitivity: 1 to 15m (adjustable)

Auto temperature compensation: digital temperaturecompensation

Power supply: 9.5 to 15V DC, 18mA

Alarm output: 35V DC, 150mA (maximum)

Tamper output: NC contacts, 60V AC, 500mA

Response speed: 0. 2 and 2m/second

White light immunity: free from any light

Pet immunity: below 35kg

RF immunity: 52V/m, 10 to 1,000MHz

Dimensions: 86 x 86 x 28mm

Weight: 150g

The original 100% hidden-application: the sensor can be hiddenbehind the picture or most of common materials, reflecting thehighest level of security structures, such as museums, exchequers,archives and more

The original MRD-PLUS technology, the change of the surroundingtemperature will not interfere the detection range at all

Anti-mask range 15m, the detecting performance won't beaffected within the detection range
