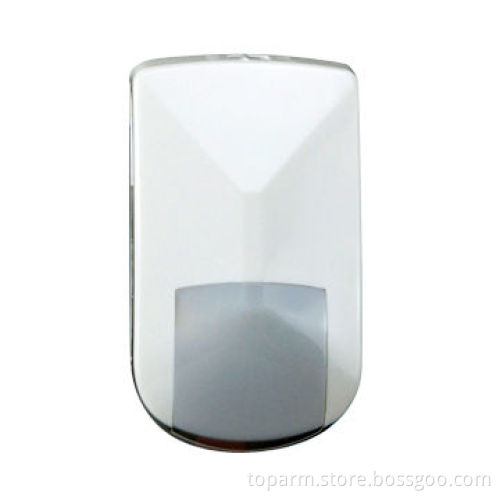

PIR Detector with 11 x 11m Detection Range

Get Latest Price

Payment Type:: T/T or L/C at Sight

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or L/C at Sight

Product Description

Features:

Dual-element passive infrared detection high precision seven-curtain mirror optic and not Fresnel lens look down design without blind zone of detection automatic temperature compensation easy and quick installation

Specifications:

Detection range: 11 x 11m
Working temperatures: -25 to +55°C
Relative humidity range: 5 to 95% RH (non-condensing)
Power supplies: 9.5 to 15V/DC/12mA
Alarm output: NC contacts, 35V/DC/150mA
Tamper output: NC contacts, 24V/AC/500mA
Response speeds: 0.3 to 3m/second
White light immunity: 10,000
Lux/m pet immunity: Below 25kg
Dimensions: 92 x 52 x 36mm

Weight:

Net weight: 80g

Dual-element passive infrared detection high precision seven-curtain mirror optic and not Fresnel lens look down design without blind zone of detection automatic temperature compensation easy and quick installation

Detection range: 11 x 11m

Working temperatures: -25 to +55°C

Relative humidity range: 5 to 95% RH (non-condensing)

Power supplies: 9.5 to 15V/DC/12mA

Alarm output: NC contacts, 35V/DC/150mA

Tamper output: NC contacts, 24V/AC/500mA

Response speeds: 0.3 to 3m/second

White light immunity: 10,000

Lux/m pet immunity: Below 25kg

Dimensions: 92 x 52 x 36mm

Net weight: 80g
