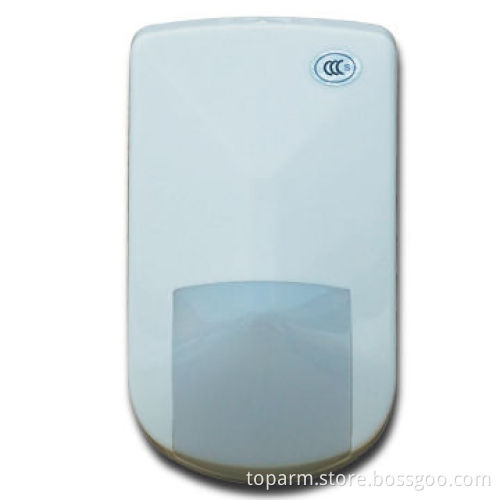

Curtain Style PIR Sensor with Automatic Temperature Compensation, Measuring 92 x 52 x 36mm

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T in Advance or L/C at Sight

Product Description

Detection mode: Dual-element passive infrared

PIR optic: High precision alloy curtain mirror optic

Detection ranges: 8 x 0.8m

Working temperatures: -25 to 55°C

Relative humidity range: 5 to 95% RH

Automatic temperature compensation: Digital temperature compensation power supply: 9.5 to 15V DC/12mA

Alarm output: NC contacts, 150mA/35V DC (maximum)

Tamper output: NC contacts, 24V AC/500mA

Response speeds: 0.3 to 3m/second

White light immunity: 10,000 Lux/minute

RF immunity: 52V/minute, 10 to 1,000MHz

Pet immunity: Below 25kg

Dimensions: 92 x 52 x 36mm

Net weight: 80g

Gross weight: 100g
