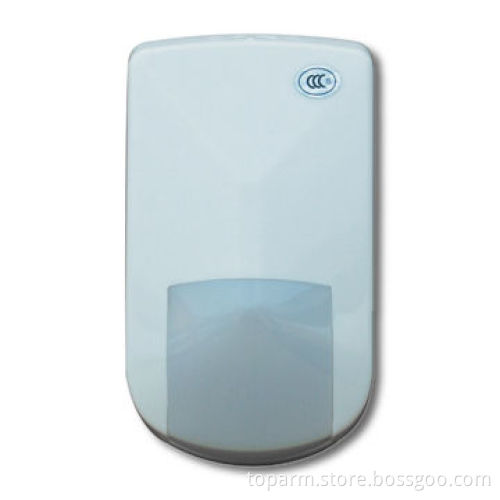

PIR Motion Sensor with Look Down Function and Quick Installation

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T in Advance or L/C at Sight

Product Description

Dual-element passive infrared detection

High precision seven curtain mirror optic delivers excellent catch performance

Look down design without dead angle of detection

Automatic temperature compensation

Easy and quick installation

Detection range: 11 x 11m

Working temperatures: -25 to 55°C

Relative humidity range: 5 to 95% RH

Power supplies: 9.5 to 15V DC/12mA

Alarm output: NC contacts, 35V DC/150mA (maximum)

Tamper output: NC contacts, 24V AC/500mA

Response speed: 0.3 to 3m/second

White light immunity: 10,000 Lux/m

RF immunity: 52V/m, 10 to 1000MHz

Dimensions: 92 x 52 x 36mm

Net weight: 80g
