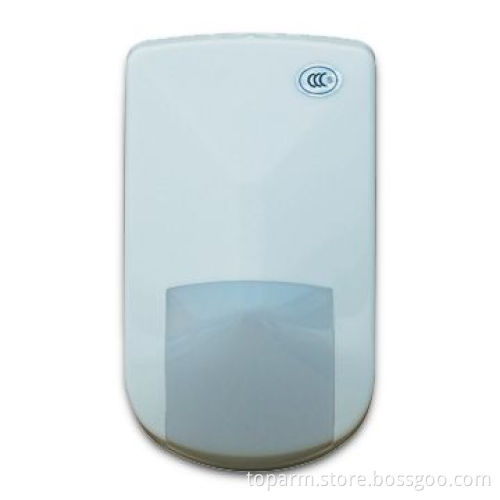

PIR Detector with Selectable Trigger Directions and High Precision Alloy Curtain Mirror Optic

Get Latest Price

Payment Type:: T/T in Advance or L/C at Sight

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T in Advance or L/C at Sight

Product Description

Features:

Curtain style PIR sensor with selectable trigger directions
Dual-element PIR and AI microprocessor
Can accurately identify the signal of human intrusion and distinguish the difference between the intrusion direction and interference signal to reduce false alarms effectively
High precision alloy curtain mirror optic delivers excellent catch performance
Narrow curtain width: The maximum curtain width is 0.8m. This allows the sensor to be deployed close to the doors or windows to detect intruders earlier
The original patented technology of selectable trigger directions: The trigger direction can be changed by adjusting the jumper (i.e. Trigger direction of entry/exit is optional). This function is not limited to installation position
Look down design without blind zone of detection
Easy and quick installation

Specifications:

Detection mode: Dual-element passive infrared
PIR optic: High precision alloy curtain mirror optic, not Fresnel lens
Detection range: 8m × 0.8m (curtain mode)
10m × 10m (wide angle mode optional)
Working temperatures: -25 - 55℃
Relative humidity range: 5 - 95% (non-condensing)
Auto temperature compensation: Semi-conductor temperature compensation
Dimensions: 92 x 52 x 36mm
Net weight: 80g

Curtain style PIR sensor with selectable trigger directions

Dual-element PIR and AI microprocessor

Can accurately identify the signal of human intrusion and distinguish the difference between the intrusion direction and interference signal to reduce false alarms effectively

High precision alloy curtain mirror optic delivers excellent catch performance

Narrow curtain width: The maximum curtain width is 0.8m. This allows the sensor to be deployed close to the doors or windows to detect intruders earlier

The original patented technology of selectable trigger directions: The trigger direction can be changed by adjusting the jumper (i.e. Trigger direction of entry/exit is optional). This function is not limited to installation position

Look down design without blind zone of detection

Easy and quick installation

Detection mode: Dual-element passive infrared

PIR optic: High precision alloy curtain mirror optic, not Fresnel lens

Detection range: 8m × 0.8m (curtain mode)

10m × 10m (wide angle mode optional)

Working temperatures: -25 - 55℃

Relative humidity range: 5 - 95% (non-condensing)

Auto temperature compensation: Semi-conductor temperature compensation

Dimensions: 92 x 52 x 36mm

Net weight: 80g
