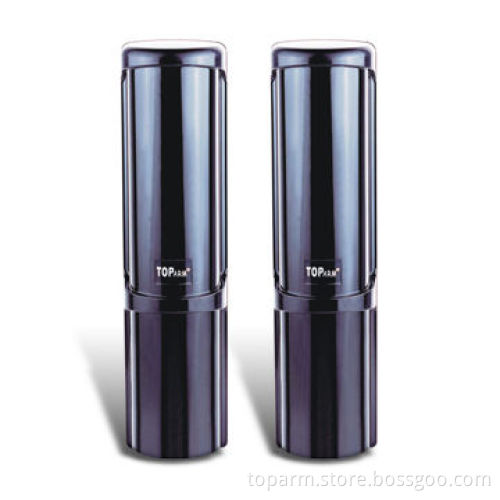

Quad IR Beam Detectors with 10.5 to 28V DC Power and 160m Outdoor Detection Range

Get Latest Price

Payment Type:: T/T or L/C at Sight

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or L/C at Sight

Product Description

Reliable quad active infrared photoelectric detectors, trigger alarm when two groups (four beams) are blocked simultaneously

Adopt ASK modulation mode, the best technology of security industry

EDC monitored circuit, can remind user, check the detectors and avoid false alarm

Advance anti-crawl design

Voice indicates the alignment status, people can judge the alignment through the voice of buzzer and this is very useful under the strong light outdoor environment

Multi-level LED alignment indicator, LED lights, buzzer, traditional telescope and voltage tests, it is visual to understand the alignment and make precise alignment

Outdoor detection range: 160m

Power: 10.5 to 28V DC

Maximum current: 140mA

Temperature: -20 to +60°C

Store temperature: -30 to +60°C

Alarm output: C type relay (NO/NC) 500mA, 24V DC

Tamper protection: 500mA/30V

Adjustment range:
