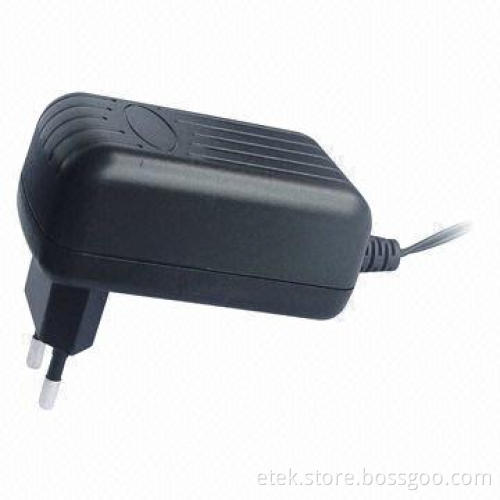

18W Switching Power Adapter with CCC/UL/PSE, GS/EK, SAA, UK/HK Wall-mount Styles

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Specifications:

Input/output:
- I/P: 90-264V, 47-63Hz
- O/P voltage: 2.8-24V (5% precision)
- O/P current: 0-3.0A
- Maximum O/P power: 9.9-20W
- Ripple and noises: 50-150mV
- Line regulation: ±1%
- Load regulation: ±5%
Items are applied to digital camera, CD/MP3/MP4 player, communication terminals, test equipment, PDA mobile phones and some portable devices
High-reliability, high-efficiency, light and convenient plug in
Reliability:
- Burn-in: 100% full load, 40 ±5°C, 4 hours (minimum)
- Leakage current: 0.25mA (maximum) at 264V AC
- Withstanding voltage: (between primary and secondary) 3,000V AC, 1 minute, 10mA (maximum)
- MTBF: meet MIL-HDBK-217F over 50,000 hours, full load, 25°C
Emissions and immunity:
- FCC part 15 class B
- EN55022 class B
- AS/NZS3548, AS/NZS4251.1 class B
- GB9254-1998/GB17625.1-2003
- ISPR22 class B, CNS13438 class B
EN55024/A1: 2001
IEC61000-4-2, IEC61000-4-3
IEC61000-4-4, IEC61000-4-5
IEC61000-4-6, IEC61000-4-11

Input/output:

Items are applied to digital camera, CD/MP3/MP4 player, communication terminals, test equipment, PDA mobile phones and some portable devices

High-reliability, high-efficiency, light and convenient plug in

Reliability:

Burn-in: 100% full load, 40 ±5°C, 4 hours (minimum)
Leakage current: 0.25mA (maximum) at 264V AC
Withstanding voltage: (between primary and secondary) 3,000V AC, 1 minute, 10mA (maximum)
MTBF: meet MIL-HDBK-217F over 50,000 hours, full load, 25°C

Emissions and immunity:
